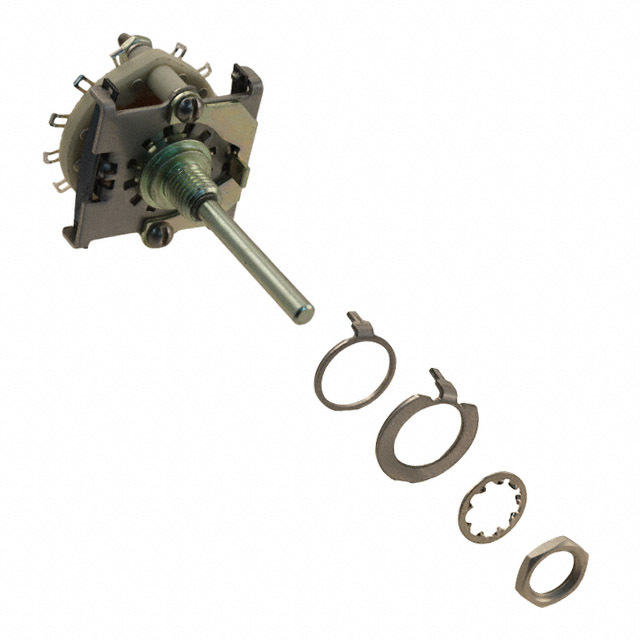

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Electroswitch
Series D2
Packaging Bulk
Number of Positions 2 ~ 3
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 3
Circuit per Deck 3P3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC), 550mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Round (3.17mm Dia)
Actuator Length 25.40mm
Angle of Throw 30°
Contact Material Brass
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 12.19mm
Panel Cutout Dimensions Circular - 6.76mm Dia
Base Product Number D2C0303
RoHS Status RoHS Compliant
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1477717-D2C0303N
