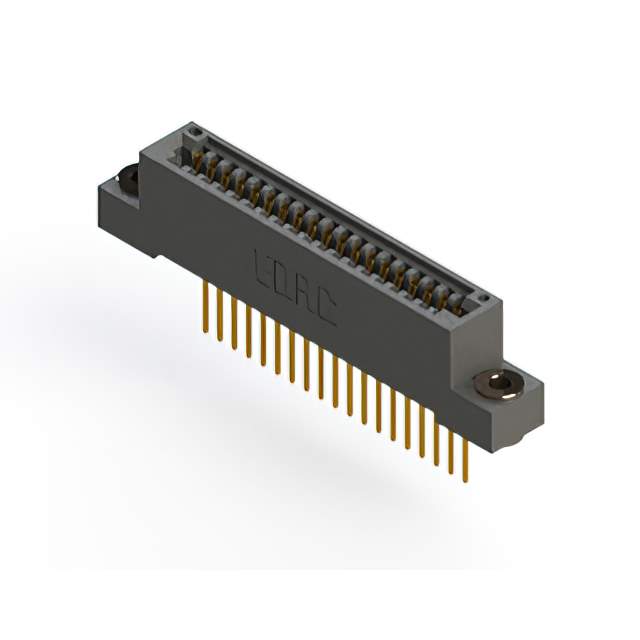

395-019-540-103 Real Image
Same model may have multiple batches, images only for reference.

395-019-540-103

Part No 395-019-540-103
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE SINGLE FML 19POS 0.100 / 19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
395-019-540-103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 19
Number of Positions 19
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 395-019
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-019-540-103
Standard Package 25
Win Source Part Number 1038953-395-019-540-103
Ultra Librarian 3D Model Ultra Librarian 395-019-540-103 CAD Model

Description

This connector is a part of the 395 series and has 19 positions.

  • Positions: 19
  • Contact Type: Cantilever
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0 microinches (0.25 micrometers)
  • Insulation Material: Polyester thermoplastic
  • Contact Material: Copper alloy
  • Standard Package: 25
  • Card Type: Non-specified single edge
  • Card Thickness: 0.054 inches to 0.070 inches (1.37mm to 1.78mm)
  • Flange Feature: Flush mount, floating bobbin, with a diameter of 0.116 inches (2.95mm)
  • Readout: Single
  • Mounting: Through a hole
  • Operating Temperature Range: -40°C to 105°C
