Same model may have multiple batches, images only for reference.

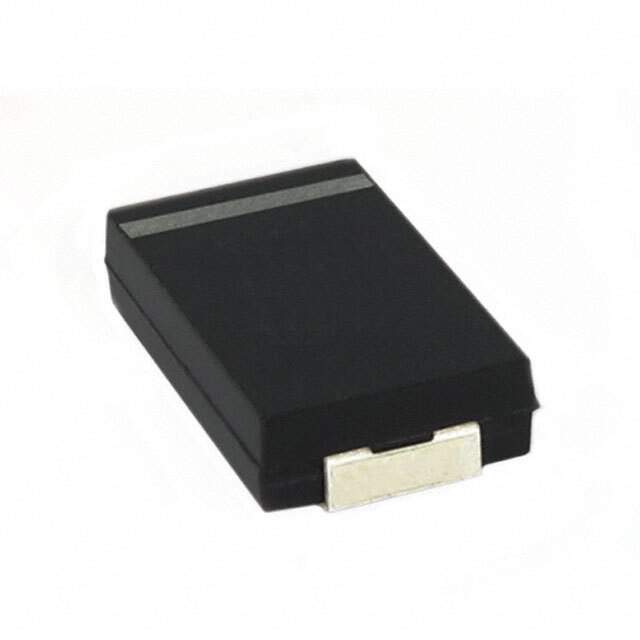

ECASD41E156M040KA0 Real Image
Same model may have multiple batches, images only for reference.

ECASD41E156M040KA0

Part No ECASD41E156M040KA0
Manufacturer Murata Electronics North America
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 15UF 20% 25V SMD / 15 µF 25 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Murata Electronics
Series ECAS
Package Cut Tape (CT),
Product Status Last Time Buy
Type Polymer
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.079" (2.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number ECASD41E
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 490-ECASD41E156M040KA0TR,490-ECASD41E156M040KA0DKR,490-ECASD41E156M040KA0CT
Standard Package 3,000
Win Source Part Number 969855-ECASD41E156M040KA0
Ultra Librarian 3D Model Ultra Librarian ECASD41E156M040KA0 CAD Model

Description

The Murata Electronics ECASD41E156M040KA0 is a polymer aluminum capacitor with a capacitance of 15 µF and a voltage rating of 25V. This capacitor is manufactured by Murata Electronics.

  • Capacitance: 15 µF
  • Voltage Rating: 25V
  • ESR: 40mOhm
  • Ripple Current: 1.6 A @ 100 kHz
  • Height: 0.079"
  • Surface Mount Land Size: 0.287" L x 0.169" W
  • Package: 2917 (7343 Metric)
  • Temperature Range: -40°C to 105°C
  • Package Contains: 3,000 Units
  • ECCN: EAR99
  • HTSUS: 8532.22.0020
  • Product Status: Last Time Buy
