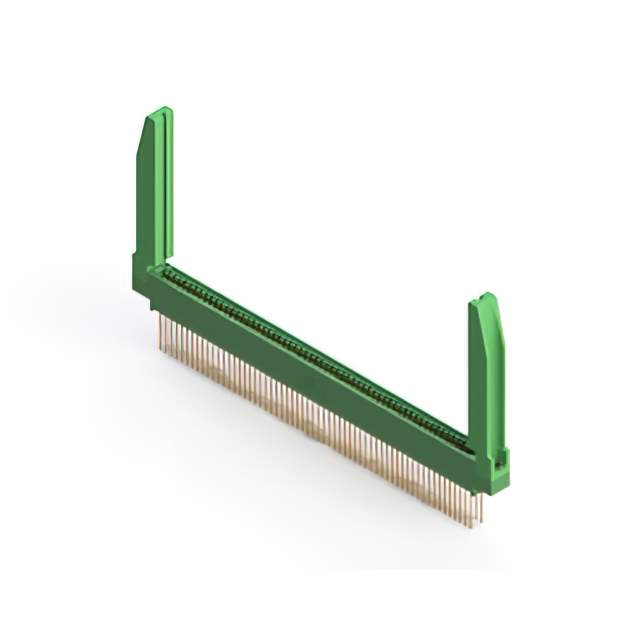

345-120-542-878 Real Image
Same model may have multiple batches, images only for reference.

345-120-542-878

Part No 345-120-542-878
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 120POS 0.100 / 120 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
345-120-542-878 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 60
Number of Positions 120
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Guides
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 345-120
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-345-120-542-878
Standard Package 25
Win Source Part Number 1007777-345-120-542-878
Ultra Librarian 3D Model Ultra Librarian 345-120-542-878 CAD Model

Description

The 345-120-542-878 is a card edge connector that has 120 positions and a pitch of 0.100 inches. It has a female gender and two rows of cantilever contacts that are terminated by wire wrap.

  • Positions: 120
  • Pitch: 0.100 inches
  • Gender: Female
  • Rows: 2
  • Contact Type: Cantilever
  • Termination: Wire Wrap
  • Contact Finish: Gold, 10.0 microns
  • Contact Material: Copper Alloy
  • Color: Green
  • Card Guides: Yes
  • Win Source Part Number: 1007777
