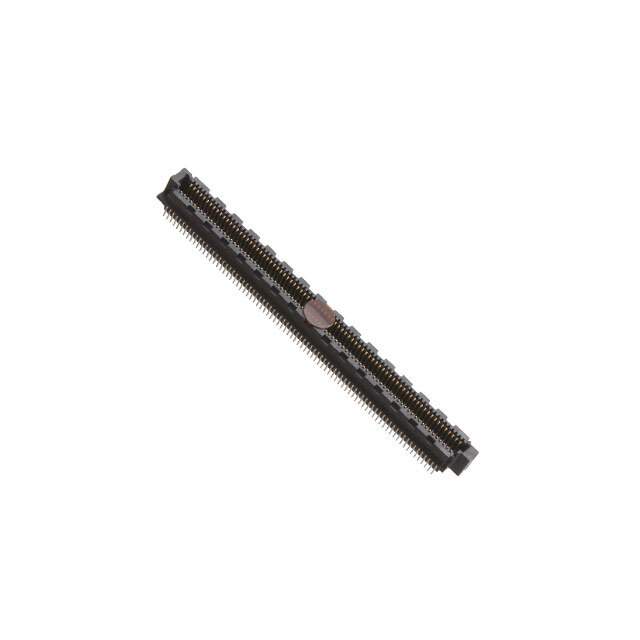

SS5-80-3.50-L-D-K-TR

Name: SS5-80-3.50-L-D-K-TR
Brand: Samtec Inc.
SKU: 1293970
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS5-80-3.50-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SS5-80-3.50-L-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ SS5
Package	Tape & Reel
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	160
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4.5mm, 5.5mm, 6mm
Height Above Board	0.132" (3.35mm)
Base Product Number	SS5-80
Other Names	SS5-80-3.50-L-D-K-TR,SS5-80-3.50-L-D-K-FR,SAM15086TR,SAM15086CT,SAM15086DKR
Standard Package	850
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293970-SS5-80-3.50-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SS5-80-3.50-L-D-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. Razor Beam™ SS5 series is a 160 position rectangular connector with a 0.020" (0.50mm) pitch.

Positions: 160
Pitch: 0.020" (0.50mm)
Connector Type: Socket type with outer shroud contacts
Height Above Board: 0.132" (3.35mm)
Packaging: Tape and reel
Features: Pick and place
Mounting: SMD (SMT) mounting
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
REACH: Unaffected
HTSUS Code: 8536.69.4040
Other Names: SS5-80-3.50-L-D-K-TR, SS5-80-3.50-L-D-K-FR, SAM15086TR, SAM15086CT, and SAM15086DKR
Manufacturer: Samtec Inc.
Base Product Number: SS5-80
