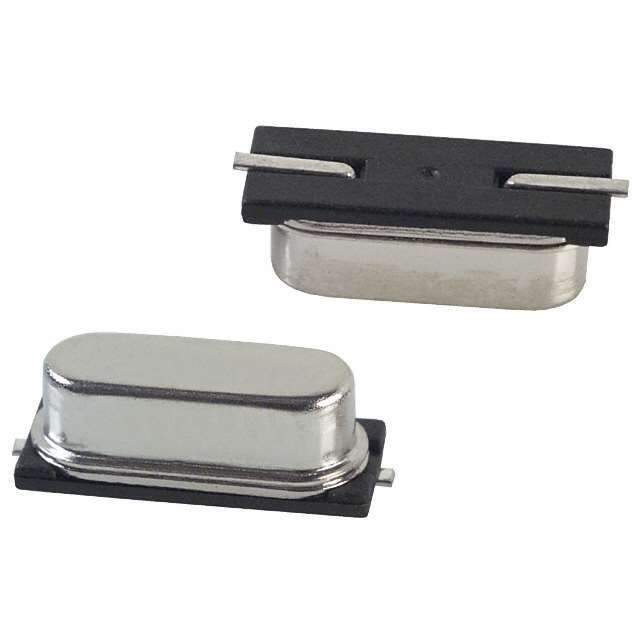

ECS-130-18-5PLX-AGN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-130-18-5PLX-AGN-TR

Part No ECS-130-18-5PLX-AGN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 13.0000MHZ 18PF SMD / 13 MHz ±25ppm Crystal 18pF 40 Ohms HC-49/US
Datasheet
ECS-130-18-5PLX-AGN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series CSM-7X
Package Tape & Reel
Type MHz Crystal
Frequency 13 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±25ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.126" (3.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC2787TR,XC2787DKR,XC2787CT
Standard Package 1,000
Win Source Part Number 1223684-ECS-130-18-5PLX-AGN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-130-18-5PLX-AGN-TR CAD Model

Description

The 1223684-ECS-130-18-5PLX-AGN-TR is a MHz crystal oscillator with a frequency of 13MHz from ECS Inc.

  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±25ppm
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Load Capacitance: 18pF
  • Package: HC-49/US
  • Mounting: SMD
  • Operating Temperature Range: -40°C to 85°C
  • Series: CSM-7X series
  • Packaging: Packaged on a reel
  • Supply and Demand Status: Limited
