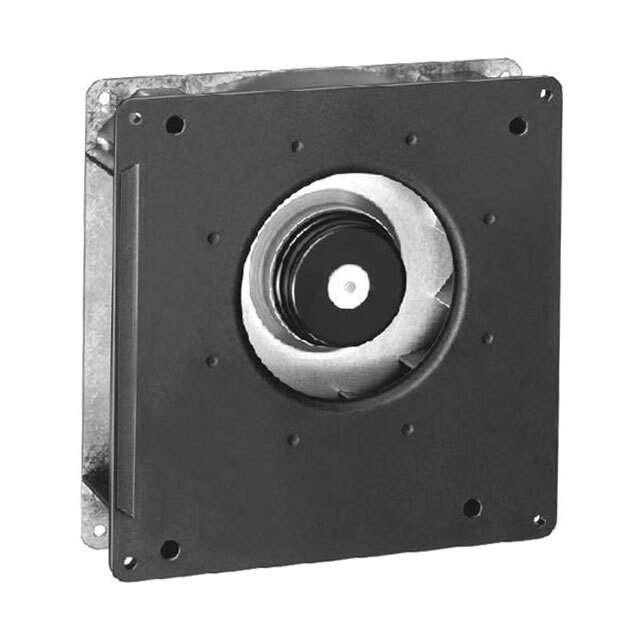

RG125-19/14N Real Image
Same model may have multiple batches, images only for reference.

RG125-19/14N

Part No RG125-19/14N
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN BLOWER CF 180X40MM 24VDC / Fan Blower, Centrifugal 24VDC Square - 180mm L x 180mm H Ball 51.5 CFM (1.44m³/min) 2 Wire Leads
Datasheet
RG125-19/14N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series RG125N
Package Bulk
Voltage - Rated 24VDC
Size / Dimension Square - 180mm L x 180mm H
Width 40.00mm
Air Flow 51.5 CFM (1.44m³/min)
Bearing Type Ball
Fan Type Blower, Centrifugal
Noise 58.0dB(A)
Power (Watts) 5 W
RPM 2550 RPM
Termination 2 Wire Leads
Temperature Range - Operating -22 ~ 167°F (-30 ~ 75°C)
Weight 1.6 lbs (725.7 g)
Voltage Range 12 ~ 28VDC
Material - Frame Plastic, Glass Filled
Material - Blade Plastic, Fiberglass Reinforced
Lifetime @ Temp. 62500 Hrs @ 40°C
Base Product Number RG125
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1350346-RG125-19/14N
Ultra Librarian 3D Model Ultra Librarian RG125-19/14N CAD Model

Description

The RG125-19/14N is a high-quality DC brushless fan that is designed to provide reliable performance in a variety of applications from ebm-papst Inc..

  • Series: RG125N
  • Voltage - Rated: 24VDC
  • Power (Watts): 5W
  • Lifetime @ Temp.: 62500 Hrs @ 40°C
  • Material - Frame: Plastic, Glass Filled
  • Material - Blade: Fiberglass Reinforced Plastic
  • Noise: 58.0dB(A)
  • Air Flow: 51.5 CFM (1.46m³/min)
  • Operating Temperature: -22 ~ 167°F (-30 ~ 75°C)
