Same model may have multiple batches, images only for reference.

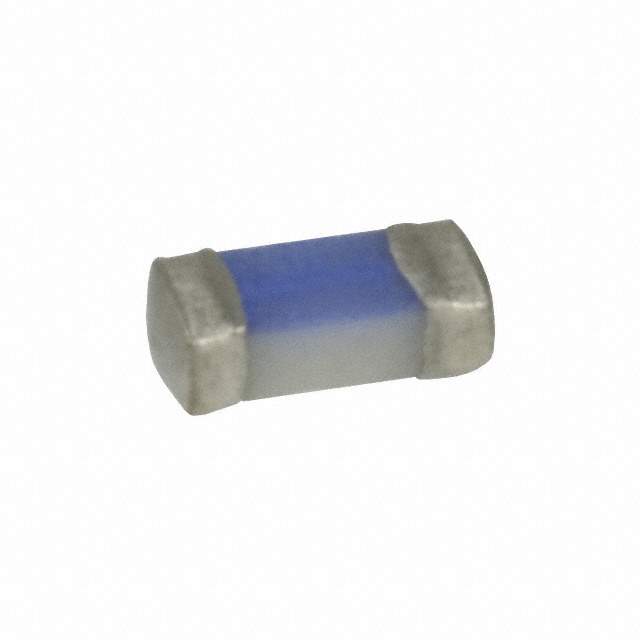

TR/0603FA5A Real Image
Same model may have multiple batches, images only for reference.

TR/0603FA5A

Part No TR/0603FA5A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MOUNT 5A 24VDC 0603
Datasheet
TR/0603FA5A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - DC 24V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.695
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.011 Ohm
Win Source Part Number 380570-TR/0603FA5A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/0603FA5A CAD Model

Description

The 380570-TR/0603FA5A from Eaton Bussmann is a board mount (cartridge style excluded) fuse that has a current rating of 5A and a voltage rating of 24V DC.

  • Current Rating: 5A
  • Voltage Rating: 24V DC
  • Response Time: Fast
  • Breaking Capacity: 35A @ rated voltage
  • Approvals: CSA and UL
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Nominal Melting - I2t: 0.695
  • Nominal Cold Resistance: 0.011 Ohm
  • Packaging: Reel - TR
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Status: Obsolete (EOL)
