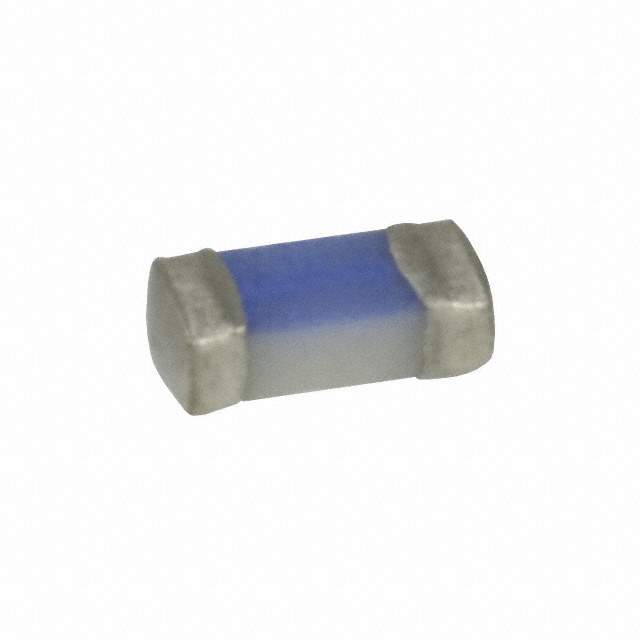

TR/0603FA1-R Real Image1 TR/0603FA1-R Real Image2 TR/0603FA1-R label picture
Same model may have multiple batches, images only for reference.
TR/0603FA1-R Real Image1 TR/0603FA1-R Real Image2 TR/0603FA1-R label picture
TR/0603FA1-R Real Image1 TR/0603FA1-R Real Image2 TR/0603FA1-R label picture
Same model may have multiple batches, images only for reference.

TR/0603FA1-R

Part No TR/0603FA1-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 1A 32VAC/VDC 0603
Datasheet
TR/0603FA1-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.0025
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.15 Ohm
Win Source Part Number 111069-TR/0603FA1-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TR/0603FA1-R CAD Model

Description

The 111069-TR/0603FA1-R from Eaton Bussmann is a board mountable fuse with a current rating of 1A and a voltage rating of 32V.

  • Current Rating: 1A
  • Voltage Rating: 32V
  • Response Time: Fast
  • Breaking Capacity: 50A @ the rated voltage
  • Approvals: CSA and UL
  • Temperature Range: -55°C to 125°C
  • Nominal Cold Resistance: 0.15 Ohm
  • Supply and Demand: Sufficient
