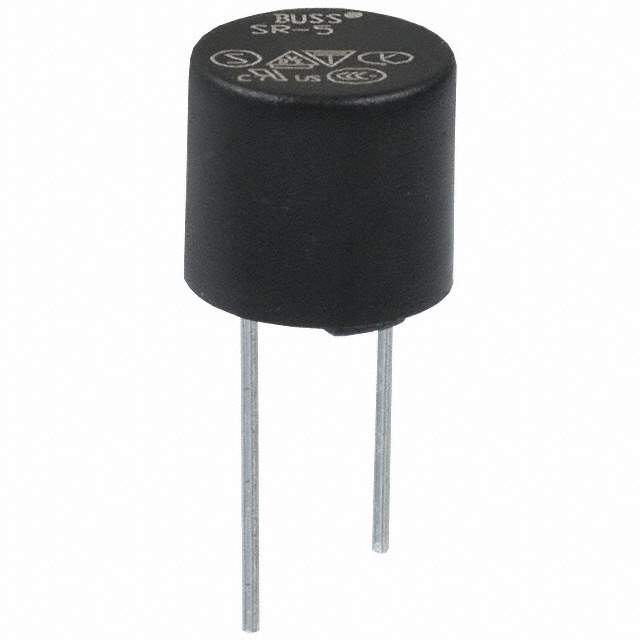

SR-5-2A-AP Real Image
Same model may have multiple batches, images only for reference.

SR-5-2A-AP

Part No SR-5-2A-AP
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MOUNT 2A 250VAC RAD
Datasheet
SR-5-2A-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging AMMO PACKAGE
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2A
Voltage Rating - AC 250V
Response Time Slow
Mounting Through Hole
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 30
Approvals CCC, cULus, KC-MARK, PSE, SEMKO, VDE
Temperature Range - Operating -40°C to 85°C
Nominal Cold Resistance 0.031 Ohm
Win Source Part Number 047239-SR-5-2A-AP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SR-5-2A-AP CAD Model

Description

The Eaton Bussmann SR-5-2A-AP fuse is a board mount type fuse with a current rating of 2A and a voltage rating of 250V AC.

  • Response Time: Slow
  • Breaking Capacity: 35A @ rated voltage
  • Approvals: CCC, cULus, KC-MARK, PSE, SEMKO, and VDE
  • Mounting: Through a hole
  • Package: Ammo package
  • Application: Circuit protection
  • Nominal melting - I2t: 30
  • Nominal cold resistance: 0.031 Ohm
  • Supply and demand status: Balanced
