Same model may have multiple batches, images only for reference.

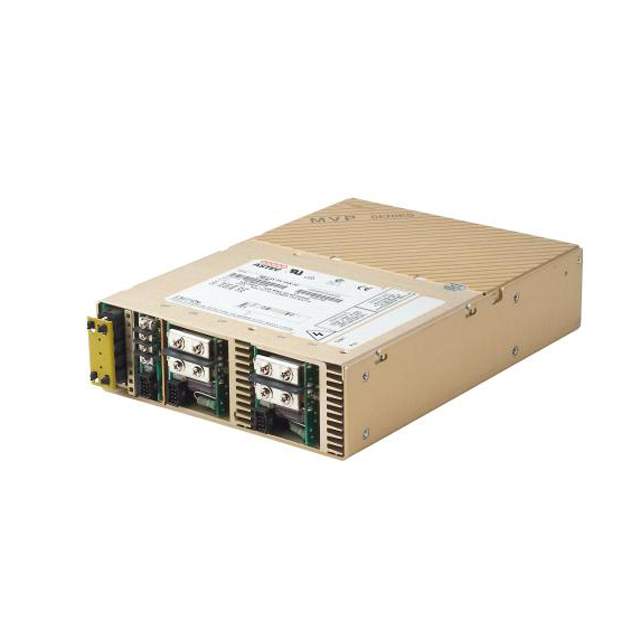

MP4-2D-1C-LLE-01 Real Image
Same model may have multiple batches, images only for reference.

MP4-2D-1C-LLE-01

Part No MP4-2D-1C-LLE-01
Manufacturer Artesyn Embedded Technologies
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 3.3V 3V 600W  /  Enclosed AC DC Converters 5 Output 3.3V 3V 85 ~ 264 VAC, 120 ~ 300 VDC Input
Datasheet
MP4-2D-1C-LLE-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Artesyn Embedded Power
Series MP4 (600W)
Package Bulk
Product Status Obsolete
Type Enclosed
Number of Outputs 5
Voltage - Input 85 ~ 264 VAC, 120 ~ 300 VDC
Voltage - Output 1 3.3V
Voltage - Output 2 3V
Current - Output 1 60 A
Current - Output 2 35 A
Current - Output 3 1 A
Current - Output 4 1 A
Current - Output 5 2 A
Power (Watts) 600W
Applications ITE (Commercial), Medical
Efficiency 85%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
Approval Agency CB, CE, CSA, UL, VDE
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.7018
Standard Package 1
Win Source Part Number 1079972-MP4-2D-1C-LLE-01
Ultra Librarian 3D Model Ultra Librarian MP4-2D-1C-LLE-01 CAD Model

Description

The MP4-2D-1C-LLE-01 is an enclosed AC/DC converter that is part of the MP4 series from Artesyn Embedded Power.

  • Power Output: 600W
  • Voltage Input: 85 ~ 264 VAC, 120 ~ 300 VDC
  • Features: Adjustable output, PFC, remote sense, standby output, and universal input
  • Voltage Output: 3.3V to 3V
  • Maximum Output Current (Output 1): 60A
  • Maximum Output Current (Output 2): 35A
  • Temperature Range: -40°C to 70°C (with derating)
  • Mounting: Chassis mount
  • Dimensions: 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
