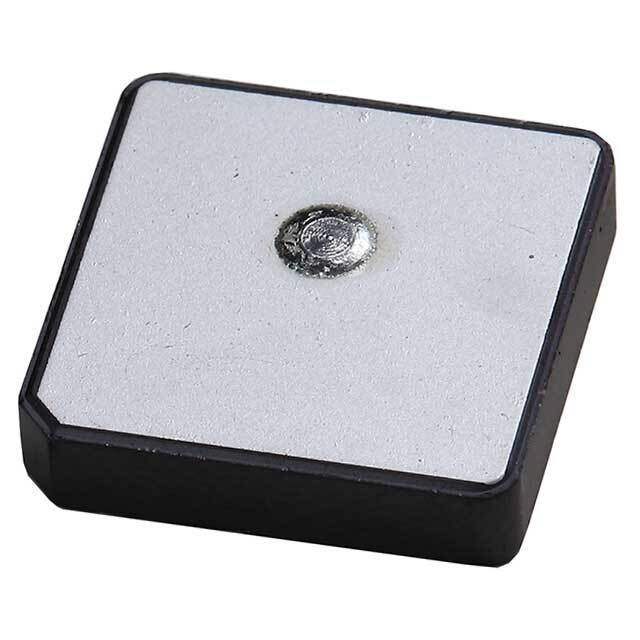

ANT1818B00DT1516S

Part No ANT1818B00DT1516S
Manufacturer Pulse
Catalog RFID Antennas
Description RF ANT 1.575/1.602GHZ CER PATCH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305996-ANT1818B00DT1516S
Category RF and Wireless RF Antennas
Manufacturer Pulse Electronics
Packaging Tray
Part Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.602GHz
Frequency Range 1.575GHz ~ 1.606GHz
Antenna Type Ceramic Patch
Return Loss -26.080dB, -26.781dB
Ultra Librarian 3D Model Ultra Librarian ANT1818B00DT1516S CAD Model

Description

  • Support GPS & GLONASS system
  • High radiation efficiency
  • Pin-solder process
  • RoHS compliant
