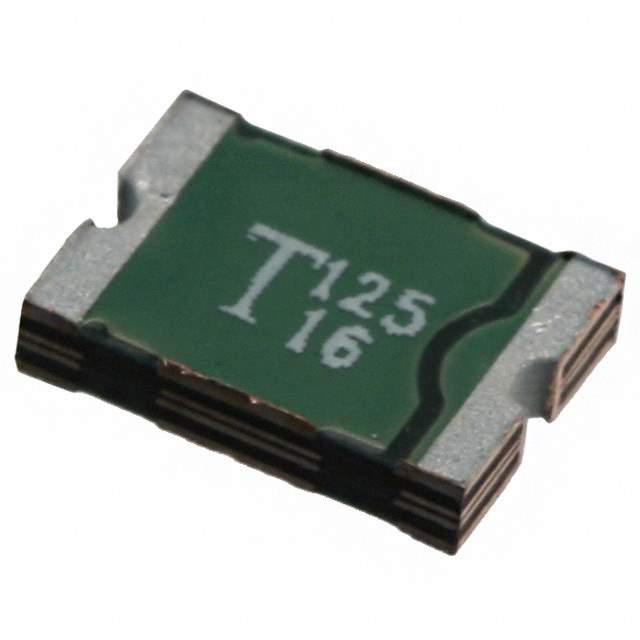

Same model may have multiple batches, images only for reference.

PTS181216V125

Name: PTS181216V125
Brand: Eaton Bussmann
SKU: 962312
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PTS181216V125
Manufacturer	Eaton Bussmann
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 16V 1.25A 1812 / Polymeric PTC Resettable Fuse 16V 1.25 A Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Eaton - Electronics Division
Series	PTS1812
Package	Tape & Reel
Type	Polymeric
Voltage - Max	16V
Current - Max	100 A
Current - Hold (Ih) (Max)	1.25 A
Current - Trip (It)	2.5 A
Time to Trip	400 ms
Resistance - Initial (Ri) (Min)	50 mOhms
Resistance - Post Trip (R1) (Max)	140 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric), Concave
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.035" (0.90mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	283-3158-2,283-3158-1,283-3158-6
Standard Package	1,000
Win Source Part Number	962312-PTS181216V125
Ultra Librarian 3D Model	Ultra Librarian PTS181216V125 CAD Model

Alternative Products

Description

The PTS1812 series PTC resettable fuse is designed for use in circuit protection applications.

Type: Polymeric
Voltage Rating: 16V
Maximum Current: 100A
Current Hold (Ih): 1.25A
Trip Current (It): 2.5A
Time to Trip: 400ms
Package: Tape and Reel
Thickness: 0.035" (0.90mm)
Mounting Type: SMD (SMT)
Package: Concave 1812 (4532 Metric)
Temperature Range: -40°C to 85°C
Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Initial Resistance (Ri): 50 mOhms
Post-Trip Resistance (R1): 140 mOhms
