Same model may have multiple batches, images only for reference.

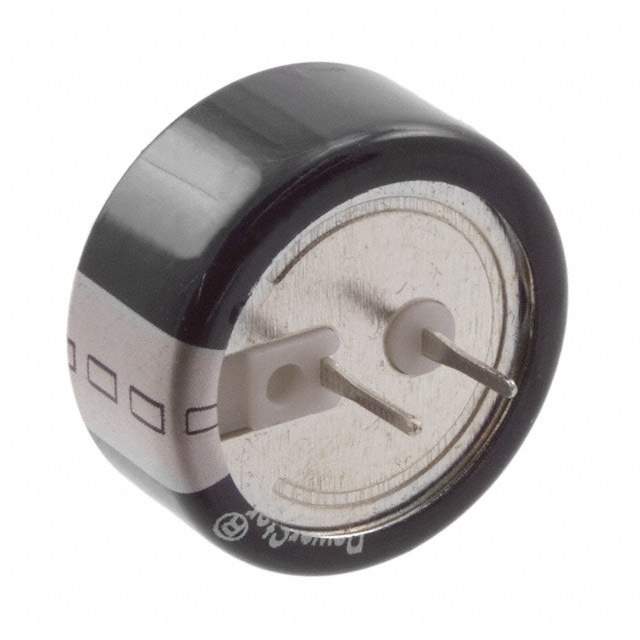

KW-5R5C684-R Real Image
Same model may have multiple batches, images only for reference.

KW-5R5C684-R

Part No KW-5R5C684-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 680MF -20% +80% 5.5V T/H / 680 mF (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series KW
Package Bulk
Capacitance 680 mF
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.348" (8.85mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1338843-KW-5R5C684-R
Ultra Librarian 3D Model Ultra Librarian KW-5R5C684-R CAD Model

Description

The KW-5R5C684-R is an Electric Double Layer Capacitor (EDLC) or Supercapacitor.

  • Capacitance: 680mF
  • Capacitance Tolerance: -20%, +80%
  • Rated Voltage: 5.5V
  • Size/Dimension: 0.846" Dia (21.50mm)
  • Height: 0.348" (8.85mm)
  • ESR: 30Ohm @ 1kHz
  • Operating Temperature: -40°C to 85°C
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Manufacturer: Eaton - Electronics Division
