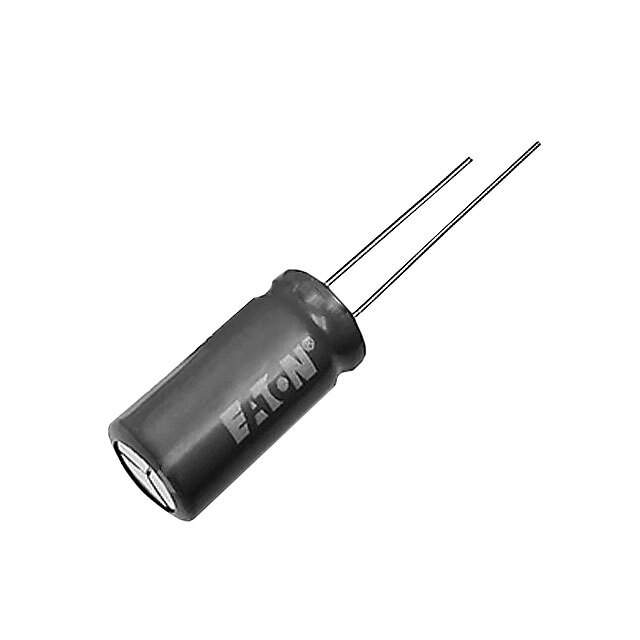

HS0814-3R8106-R Real Image
Same model may have multiple batches, images only for reference.

HS0814-3R8106-R

Part No HS0814-3R8106-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description EATON HS HYBRID SUPERCAPACITOR, / 10 F (EDLC) Supercapacitor 3.8 V Radial, Can 1.5Ohm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series HS
Package Strip
Capacitance 10 F
Tolerance ±20%
Voltage - Rated 3.8 V
ESR (Equivalent Series Resistance) 1.5Ohm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.138" (3.50mm)
Dimension 0.335" Dia (8.50mm)
Height - Seated (Max) 0.610" (15.50mm)
Temperature Range - Operating -15°C ~ 70°C
MSL Level 1 (Unlimited)
Other Names 283-HS0814-3R8106-R
Standard Package 100
Win Source Part Number 970505-HS0814-3R8106-R
Ultra Librarian 3D Model Ultra Librarian HS0814-3R8106-R CAD Model

Description

The HS series electric double layer capacitor from Eaton - Electronics Division is a high-performance capacitor that is perfect for use in various applications.

  • Capacitance: 10 F
  • Voltage Rating: 3.8 V
  • ESR: 1.5Ohm
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Temperature Range: -15°C to 70°C
  • Lifetime: 1000 Hrs @ 70°C
  • Packaging: Strip
  • Standard Package: 100 capacitors
  • Dimensions: 0.335" Dia (8.50mm) x 0.610" (15.50mm) height-seated (Max)
