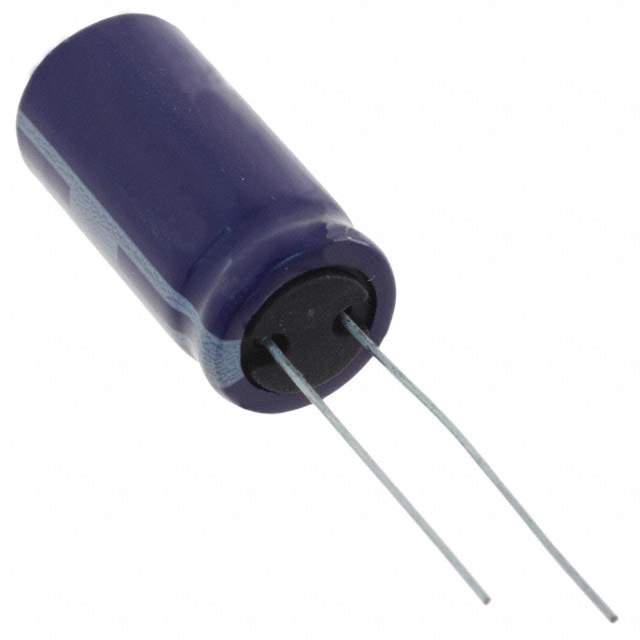

HB1325-2R5156-R Real Image
Same model may have multiple batches, images only for reference.

HB1325-2R5156-R

Part No HB1325-2R5156-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 15F -10% +30% 2.5V T/H / 15 F (EDLC) Supercapacitor 2.5 V Radial, Can 50mOhm @ 100Hz 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series HB
Package Bulk
Capacitance 15 F
Tolerance -10%, +30%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 50mOhm @ 100Hz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 1.118" (28.40mm)
Temperature Range - Operating -25°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names HB1325-2R5156R,283-3127,HB13252R5156R
Standard Package 100
Win Source Part Number 1061793-HB1325-2R5156-R
Ultra Librarian 3D Model Ultra Librarian HB1325-2R5156-R CAD Model

Description

The HB1325-2R5156-R is an electric double layer capacitor (EDLC) from Eaton - Electronics Division.

  • Capacitance: 15F
  • Voltage Rating: 2.5V
  • ESR (Equivalent Series Resistance): 50mOhm @ 100Hz
  • Lifetime: 1000 hours @ 70°C
  • Operating Temperature: -25°C to 70°C
  • Package: Radial, Can
  • Mounting: Through-Hole
