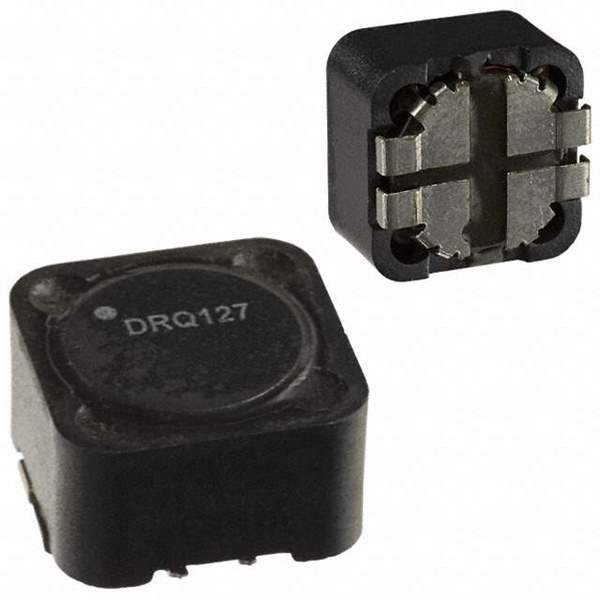

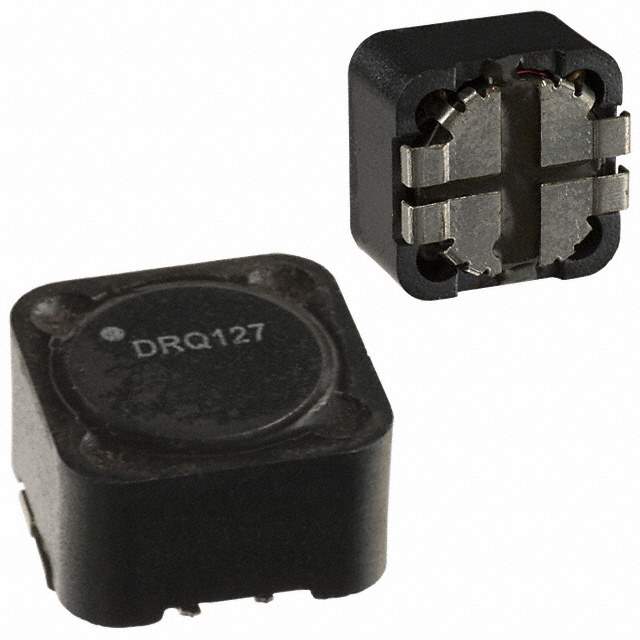

DRQ127-220-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-220-R

Part No DRQ127-220-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 22.93UH SMD / Shielded 2 Coil Inductor Array 91.72 µH Inductance - Connected in Series 22.93 µH Inductance - Connected in Parallel 39.1mOhm DC Resistance (DCR) - Parallel 4 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 22.93 µH
Inductance - Connected In Series 91.72 µH
Tolerance ±20%
Current Rating - Parallel 4 A
Current Rating - Series 2 A
Current Saturation - Parallel 7.57 A
Current Saturation - Series 3.78 A
DC Resistance (DCR) - Parallel 39.1mOhm
DC Resistance (DCR) - Series 157mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 513-1145-1,Q12754449,513-1145-2,DRQ127-220,513-1145-6,DRQ127220R,DRQ127-220-ND
Standard Package 350
Win Source Part Number 1002781-DRQ127-220-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-220-R CAD Model

Description

The DRQ127-220-R electronic component from Eaton - Electronics Division is an array signal transformer type with a shielding of shielded. The manufacturer is Eaton - Electronics Division.

  • Type: Array Signal Transformer
  • Shielding: Shielded
  • Package Type: Tape and Reel
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Height: 0.315" (8.00mm)
  • Number of Coils: 2
  • Inductance (Series): 91.72 µH
  • Inductance (Parallel): 22.93 µH
  • Current Rating (Parallel): 4A
  • Current Rating (Series): 2A
  • Current Saturation (Parallel): 7.57A
  • Current Saturation (Series): 3.78A
  • DC Resistance (DCR) - Parallel: 39.1mOhm
  • DC Resistance (DCR) - Series: 157mOhm
  • HTSUS: 8504.50.8000
