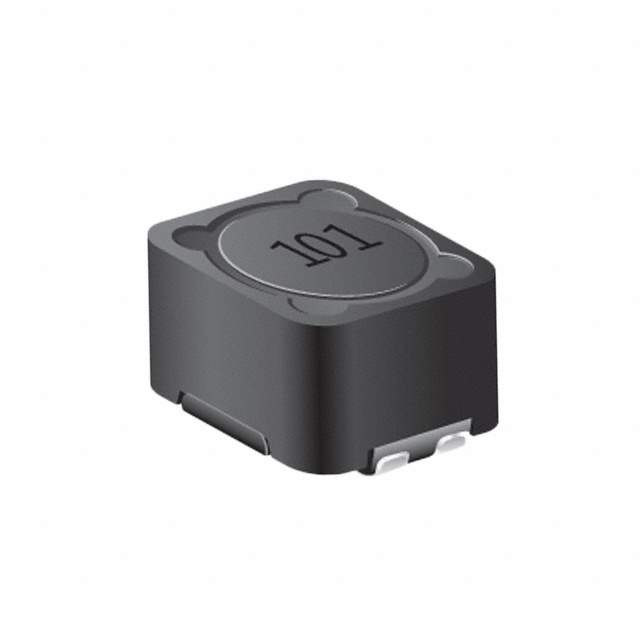

The Bourns SRF1280A-102M is an electronic component that falls under the category of Inductors, Coils, Chokes>Arrays, Signal Transformers.

• Series: SRF1280A
• Package: Tape & Reel
• Standard Package: 400
• Shielded: Yes
• Mounting: SMD (SMT)
• Tolerance: ±20%
• Height: 0.315" (8.00mm)
• Number of Coils: 2
• Inductance Series: 4 mH
• Inductance Parallel: 1 mH
• Current Rating Parallel: 610 mA
• Current Rating Series: 307 mA
• Current Saturation Parallel: 1.14 A
• Current Saturation Series: 571 mA
• DC Resistance (DCR) Parallel: 1.992Ohm Max
• DC Resistance (DCR) Series: 7.202Ohm Max
• Package/Case: Nonstandard
• Operating Temperature: -40°C ~ 125°C
• Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
• ECCN: EAR99
• REACH Status: REACH unaffected
• HTSUS: 8504.50.4000
