Same model may have multiple batches, images only for reference.

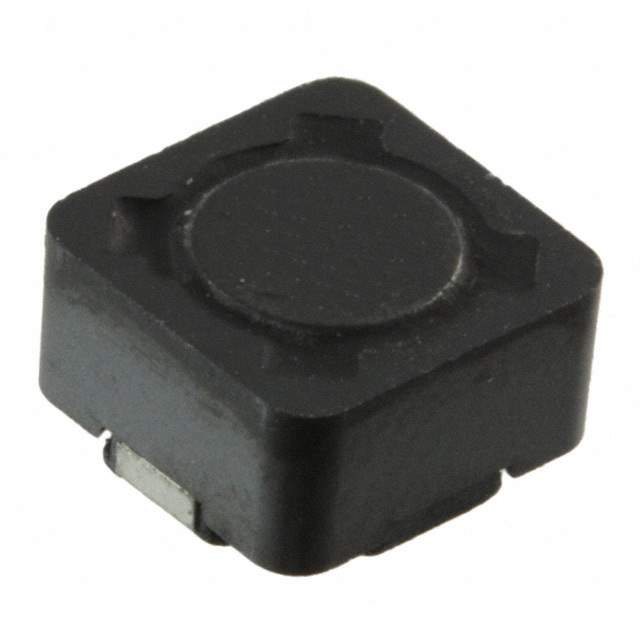

DRA74-4R7-R Real Image
Same model may have multiple batches, images only for reference.

DRA74-4R7-R

Part No DRA74-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.41A 24MOHM SMD / 4.7 µH Shielded Wirewound Inductor 3.41 A 24mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Wirewound
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 3.41 A
Current - Saturation (Isat) 4.38A
Shielding Shielded
DC Resistance (DCR) 24mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max) 0.171" (4.35mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 283-3638-1,283-3638-2,DRA74-4R7-R-ND,DRA744R7R,283-3638-6
Standard Package 1,100
Win Source Part Number 1327499-DRA74-4R7-R
Ultra Librarian 3D Model Ultra Librarian DRA74-4R7-R CAD Model

Description

The Eaton - Electronics Division fixed inductor is a high-quality inductor that is perfect for use in a wide range of electronic applications.

  • Type: Wirewound
  • Shielded: Yes
  • Inductance: 4.7 µH
  • AEC-Q200 Rating: Yes
  • Tolerance: ±20%
  • Mounting: Surface Mountable
