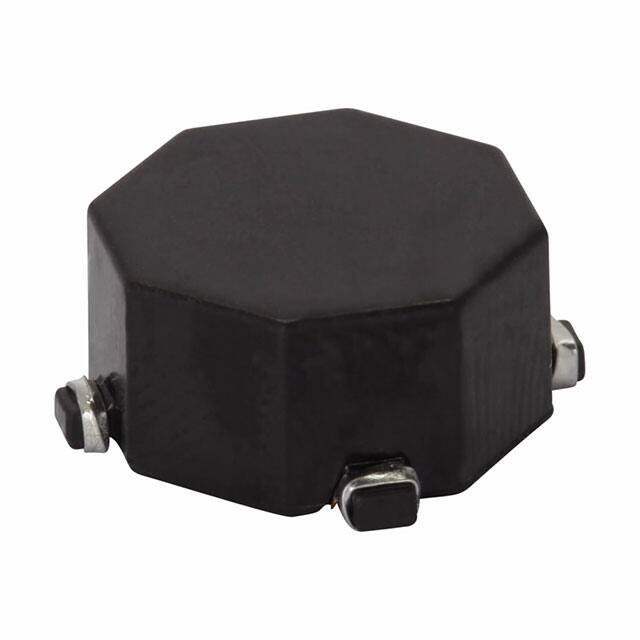

CTX300-4P-R Real Image
Same model may have multiple batches, images only for reference.

CTX300-4P-R

Part No CTX300-4P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 298.93UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Arrays, Signal Transformers
Mfr Eaton Bussmann
Series Econo-Pac™
Package Tape & Reel
Product Status Active
Number of Coils 2
Inductance - Connected In Parallel 298.93 µH
Inductance - Connected In Series 1.2 mH
Tolerance ±20%
Current Rating - Parallel 540 mA
Current Rating - Series 270 mA
DC Resistance (DCR) - Parallel 1.003Ohm Max
DC Resistance (DCR) - Series 4.011Ohm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height 0.250" (6.35mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 580992-CTX300-4P-R
Ultra Librarian 3D Model Ultra Librarian CTX300-4P-R CAD Model

Description

The 580992-CTX300-4P-R is an array of signal transformers from the Econo-Pac™ series manufactured by Eaton Bussmann.

  • Package: tape & reel
  • Shielding: unshielded
  • Size: 0.550" length x 0.550" width
  • Number of Coils: two
  • Inductance (Series): 1.2 mH
  • Inductance (Parallel): 298.93 µH
  • Current Rating (Series): 270 mA
  • Current Rating (Parallel): 540 mA
  • DCR (Series): 4.011 Ohm
  • DCR (Parallel): 1.003 Ohm
  • Height: 0.250"
  • Mounting: surface mount
  • Operating Temperature Range: -40°C to 85°C
  • Status: active
