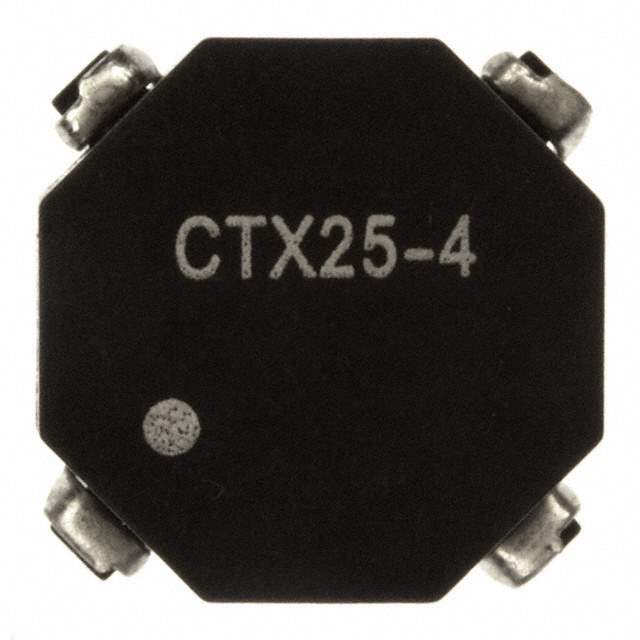

CTX25-4-R Real Image
Same model may have multiple batches, images only for reference.

CTX25-4-R

Part No CTX25-4-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 25.92UH SMD
Datasheet
CTX25-4-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 103.68μH
Inductance - Connected In Parallel 25.92μH
Tolerance ±20%
Current Rating - Parallel 2A
Current Rating - Series 1A
DC Resistance (DCR) - Parallel 63 mOhm Max
DC Resistance (DCR) - Series 253 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 050531-CTX25-4-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX25-4-R CAD Model

Description

Product Overview

The CTX25-4-R is an advanced electronic component developed with cutting-edge technology. It provides exceptional reliability and efficiency for numerous applications.

Features and Benefits

  • Exceptional reliability for demanding applications
  • Superior energy efficiency
  • Robust construction for harsh environments

Applications

  • Industrial control systems
  • Advanced robotics
  • Power management solutions
  • Automotive electronics

Additional Details

Designed for high-performance environments, the CTX25-4-R ensures reduced energy consumption while maintaining top-tier operational efficiency.
