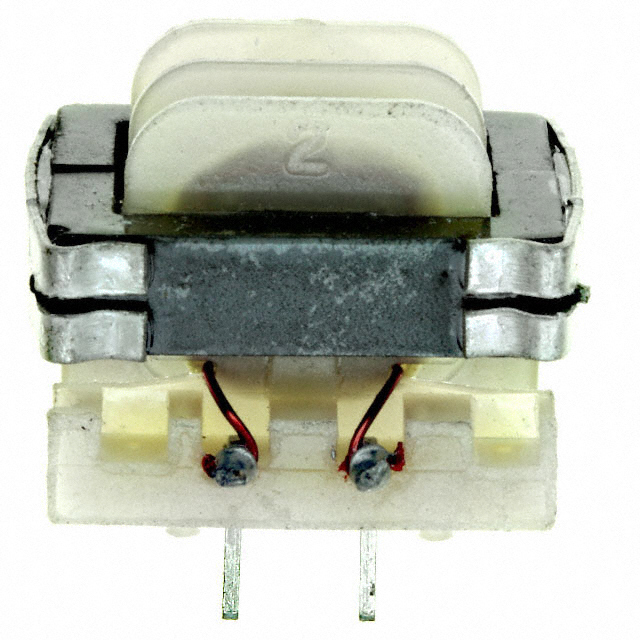

CMS3-2-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CMS3-2-R

Part No CMS3-2-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 45UH 5.1A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 45 µH @ 100 kHz
Current Rating (Max) 5.1A
DC Resistance (DCR) (Max) 6mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting Type Surface Mount
Size / Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height (Max) 0.236" (6.00mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530470-CMS3-2-R
Ultra Librarian 3D Model Ultra Librarian CMS3-2-R CAD Model
