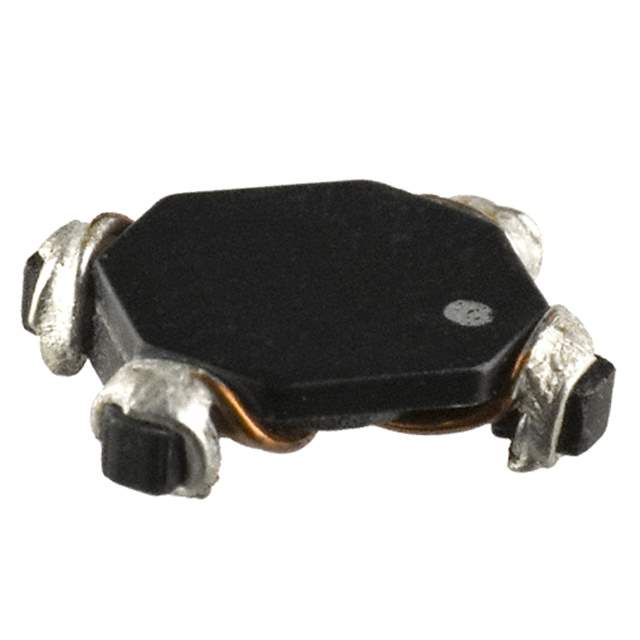

CMS1-2-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-2-R

Part No CMS1-2-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 8UH 5.7A 2LN SMD
Datasheet
CMS1-2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Eaton
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8μH @ 100kHz
Current Rating (Max) 5.7A
DC Resistance (DCR) (Max) 4 mOhm (Typ)
Temperature Range - Operating -40°C to 160°C
Mounting SMD (SMT)
Height (Max) 0.102" (2.60mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 1029717-CMS1-2-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMS1-2-R CAD Model

Description

The Eaton CMS1-2-R is a power line SMD (SMT) filter with a maximum current rating of 5.7A and a DC resistance (DCR) of 4 mOhm (Typ).

  • Maximum Current Rating: 5.7A
  • DC Resistance (DCR): 4 mOhm (Typ)
  • Lines: 2
  • Inductance: 8μH @ 100kHz
  • Height: 0.102" (2.60mm)
  • Temperature Range: -40°C to 160°C
  • Approval: Approved for various electronic applications
  • Packaging: Reel
