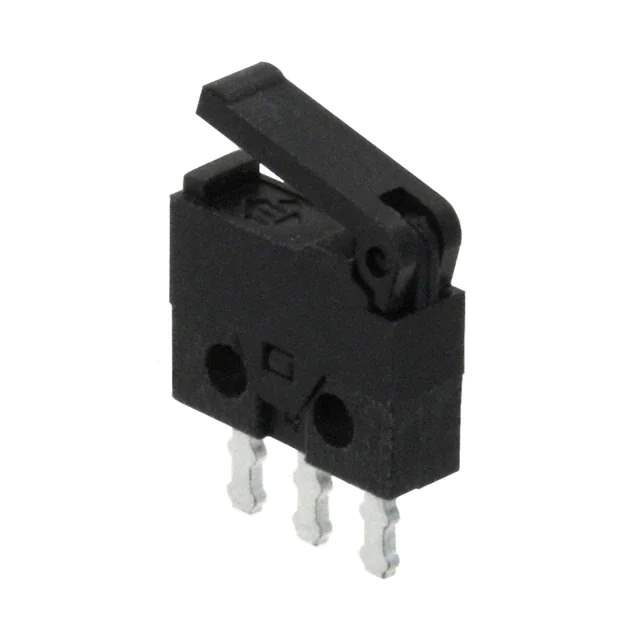

TS0101F020P Real Image
Same model may have multiple batches, images only for reference.

TS0101F020P

Part No TS0101F020P
Manufacturer E-Switch
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 300MA 6V / Switch SPDT Through Hole
Datasheet
TS0101F020P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr E-Switch
Series TS
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 20gf
Operating Position 0.264" (6.7mm)
Pretravel 0.071" (1.8mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Base Product Number TS0101
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 849266-TS0101F020P
Ultra Librarian 3D Model Ultra Librarian TS0101F020P CAD Model

Description

The 849266-TS0101F020P is a lever, straight limit switch from the TS series by E-Switch.

  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Voltage Rating: 6V DC
  • Current Rating: 300mA (DC)
  • Operating Force: 20gf
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: -25°C to 85°C
  • Product Status: Active
