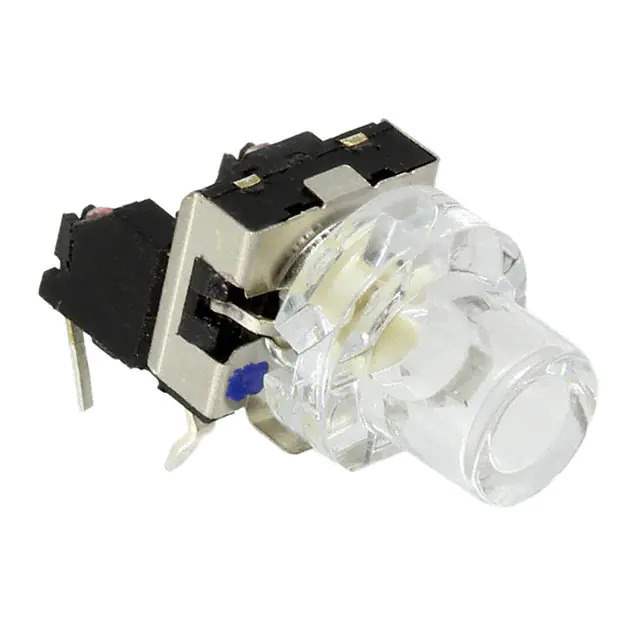

TL6215RF200BDT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL6215
Package Tray
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Round Button
Mounting Type Through Hole, Right Angle
Actuator Length, Right Angle 9.60mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.70mm x 6.65mm
Illumination Illuminated
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 3.3 VDC
Operating Force 200gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.45mm
Mechanical Life 500,000 Cycles
Base Product Number TL6215
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 899795-TL6215RF200BDT
Ultra Librarian 3D Model Ultra Librarian TL6215RF200BDT CAD Model

Description

The TL6215RF200BDT is a tactile switch from E-Switch's TL6215 series. It features a PC pin termination style and a round button actuator type.

  • Series: TL6215
  • Termination Style: PC Pin
  • Actuator Type: Round Button
  • Travel Distance: 0.45mm
  • Operating Force: 200gf
  • Illumination Voltage: 3.3VDC
  • Illumination Color: Blue LED
  • Mechanical Life: 500,000 cycles
  • Operating Temperature: -20°C to 70°C
  • Actuation: Side Actuated
  • Outline: 7.70mm x 6.65mm
  • Mounting: Through-Hole, Right-Angle
  • Package: Tray
  • Features: Dust Tight, Waterproof
  • Manufacturer: E-Switch
