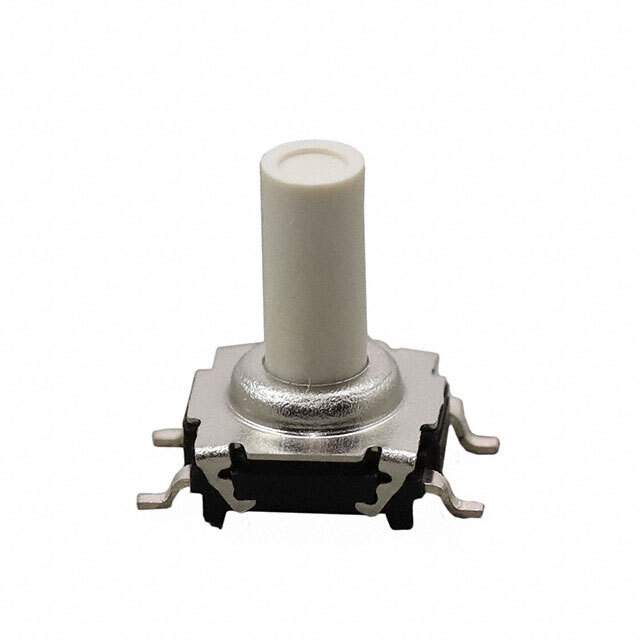

TL6120DF500QG Real Image
Same model may have multiple batches, images only for reference.

TL6120DF500QG

Part No TL6120DF500QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL6120DF500QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL6120
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 10.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 7.40mm x 7.40mm
Illumination Non-Illuminated
Operating Force 500gf
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA) , Nylon
Switch Travel 0.50mm
Mechanical Life 500,000 Cycles
Base Product Number TL6120
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1349534-TL6120DF500QG
Ultra Librarian 3D Model Ultra Librarian TL6120DF500QG CAD Model

Description

The E-Switch TL6120DF500QG is a tactile switch that belongs to the TL6120 series.

  • Circuit: SPST-NO
  • Actuator Type: standard
  • Switch Function: off-mom
  • Switch Travel: 0.50mm
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 500gf
  • Mechanical Life: 500,000 cycles
  • Mounting Technology: surface mount
  • Termination Style: gull-wing
  • Package: tape and reel
  • Outline: 7.40mm x 7.40mm
  • Actuator Material: polyamide (PA) and nylon
  • Operating Temperature Range: -40°C to 85°C
