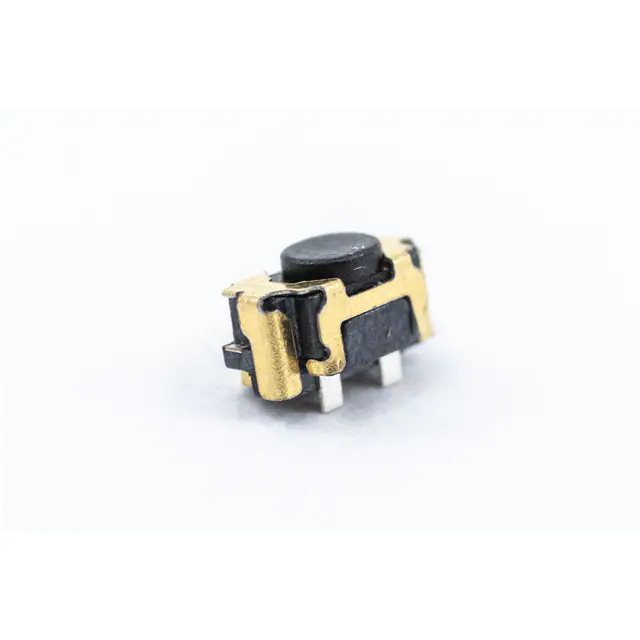

TL4115AF220Q E-Switch
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL4115
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function On-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.60mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 4.50mm x 2.20mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 220gf
Ingress Protection -
Features -
Temperature Range - Operating -30°C ~ 85°C
Actuator Material -
Switch Travel 0.15mm
Mechanical Life 600,000 Cycles
Base Product Number TL4115
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376463-TL4115AF220Q
Ultra Librarian 3D Model Ultra Librarian TL4115AF220Q CAD Model

Description

The TL4115AF220Q is a tactile switch from E-Switch.

  • Product: Tactile Switch
  • Manufacturer: E-Switch
  • Circuit: SPST-NO
  • Switch Function: On-Mom
  • Actuator Height off PCB: 2.60mm
  • Outline: 4.50mm x 2.20mm
  • Mechanical Life: 600,000 Cycles
  • Contact Rating: 0.05A @ 12VDC
  • Illumination: Non-Illuminated
  • Operating Force: 220gf
  • Mounting Type: Surface Mount
  • Termination Style: SMD (SMT) Tab
