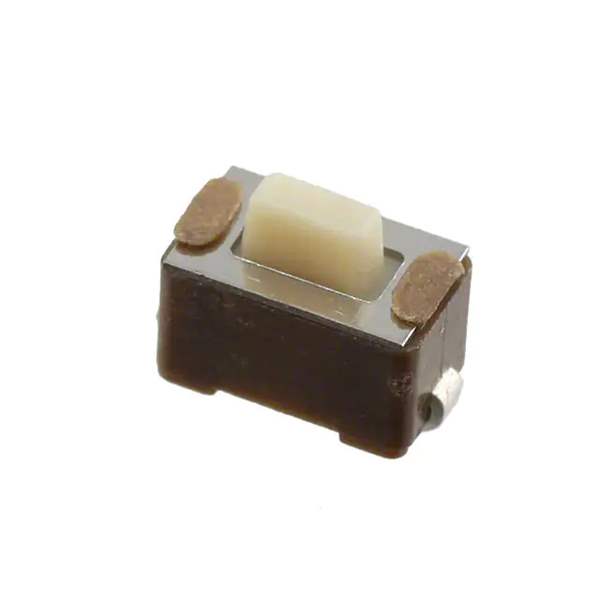

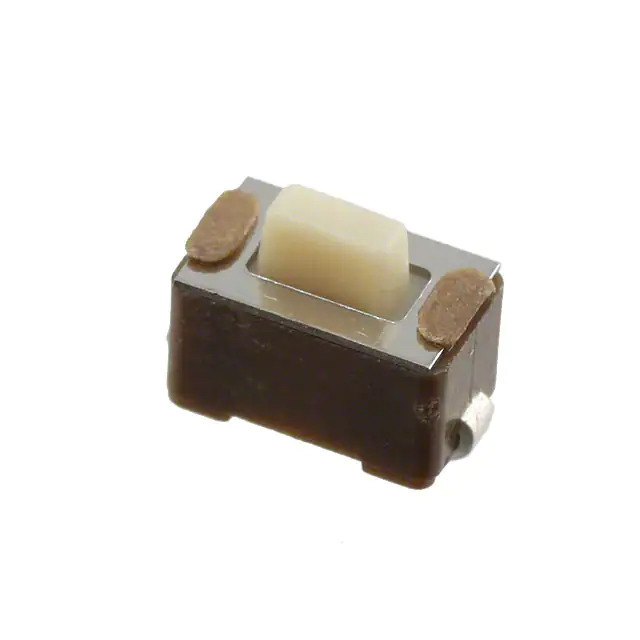

TL3302BF260QJ E-Switch
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL3302
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 260gf
Ingress Protection -
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 30,000 Cycles
Base Product Number TL3302
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376526-TL3302BF260QJ
Ultra Librarian 3D Model Ultra Librarian TL3302BF260QJ CAD Model

Description

The TL3302BF260QJ is a tactile switch from E-Switch.

  • Mounting Type: Surface Mount
  • Actuator Type: Rectangular Button
  • Switch Function: Tactile
  • Mechanical Life: 30,000 Cycles
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Actuator Height off PCB: 5.00mm
  • Travel: 0.25mm
  • Illumination: Non-Illuminated
  • Operating Force: 260gf
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature: -20°C ~ 70°C
  • Packaging: Tape & Reel (TR)
