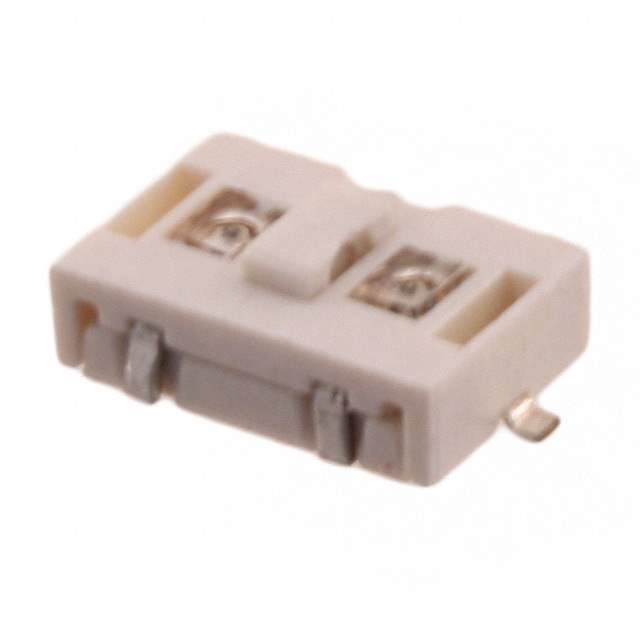

Same model may have multiple batches, images only for reference.

TL3200AF160GRQ

Name: TL3200AF160GRQ
Brand: E-Switch
SKU: 367858
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL3200AF160GRQ
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	E-Switch
Packaging	Reel - TR
Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	2.50mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.80mm x 4.50mm
Illumination	Illuminated
Illumination Type, Color	LED, Green/Red
Illumination Voltage (Nominal)	2.3 VDC
Operating Force	160gf
Actuator Material	Liquid Crystal Polymer (LCP)
Switch Travel	0.25mm
Mechanical Life	30,000 Cycles
Temperature Range - Operating	-25°C to 85°C
Win Source Part Number	048013-TL3200AF160GRQ
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TL3200AF160GRQ CAD Model

Description

The TL3200AF160GRQ is a surface-mount switch manufactured by E-Switch.

It is a single-pole, single-throw (SPST-NO) switch with an off-momentary function.
Its actuator is a rectangular button made of liquid crystal polymer (LCP), and it is illuminated with green and red LEDs.
It has a mechanical life of 30,000 cycles and can operate @ temperatures ranging from -25°C to 85°C.
The TL3200AF160GRQ is a high-quality switch that offers excellent performance and reliability.
