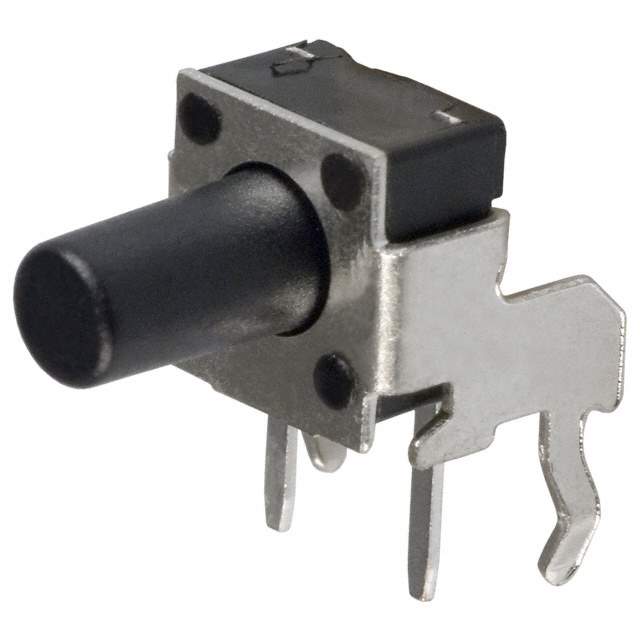

Same model may have multiple batches, images only for reference.

TL1105SF160Q

Name: TL1105SF160Q
Brand: E-Switch
SKU: 1023471
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL1105SF160Q
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	TL1105SF160Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	E-Switch
Series	TL1105
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole, Right Angle
Actuator Length, Right Angle	8.35mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.10mm x 6.55mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	TL1105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	EG1839,TL1105SF160,P010299
Standard Package	1,000
Win Source Part Number	1023471-TL1105SF160Q
Ultra Librarian 3D Model	Ultra Librarian TL1105SF160Q CAD Model

Description

The E-Switch electronic component is a tactile switch with a series of TL1105. The Win Source Part Number is 1023471-TL1105SF160Q.

Circuit: SPST-NO
Switch Function: off-mom
Actuator Type: standard
Switch Travel: 0.25mm
Contact Rating @ Voltage: 0.05A @ 12VDC
Outline: 7.10mm x 6.55mm
Illumination: non-illuminated
Operating Force: 160gf
Mechanical Life: 100,000 cycles
Mounting Type: through hole, right angle
Temperature Range for Operating: -20°C ~ 70°C
Actuator Length, Right Angle: 8.35mm
ECCN: EAR99
Mfr: E-Switch
RoHS Status: RoHS compliant
