Same model may have multiple batches, images only for reference.

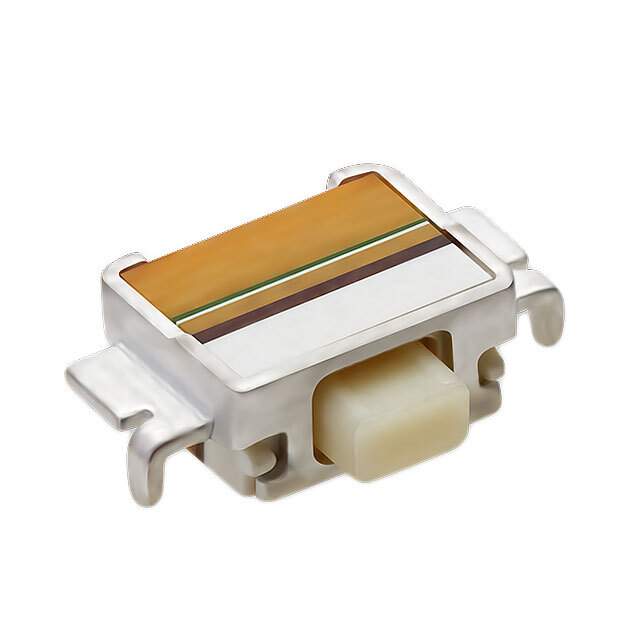

LS12P2E-T Real Image
Same model may have multiple batches, images only for reference.

LS12P2E-T

Part No LS12P2E-T
Manufacturer Citizen
Catalog Tactile Switches
Description Switch operating force | SWITCH TACT SPST-NO 0.02A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Citizen
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.02A at 12VDC
Actuator Type Rectangular Button
Mounting Style SMT, Right Angle
Actuator Length, Right Angle 1.35mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 5.35mm x 2.85mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1204567-LS12P2E-T
Manufacturer Homepage ce.citizen.co.jp/e/index.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LS12P2E-T CAD Model

Description

The Citizen LS12P2E-T is a SPST-NO rectangular button switch.

  • Switch Type: SPST-NO
  • Actuator Shape: rectangular button
  • Switch Travel: 0.20mm
  • Operating Force: 160gf
  • Actuator Orientation: side actuated
  • Outline Dimensions: 5.35mm x 2.85mm
  • Supply and Demand Status: balanced
  • Manufacturer: Citizen
  • Manufacturer Homepage: ce.citizen.co.jp/e/index.html
  • Win Source Part Number: 1204567-LS12P2E-T
