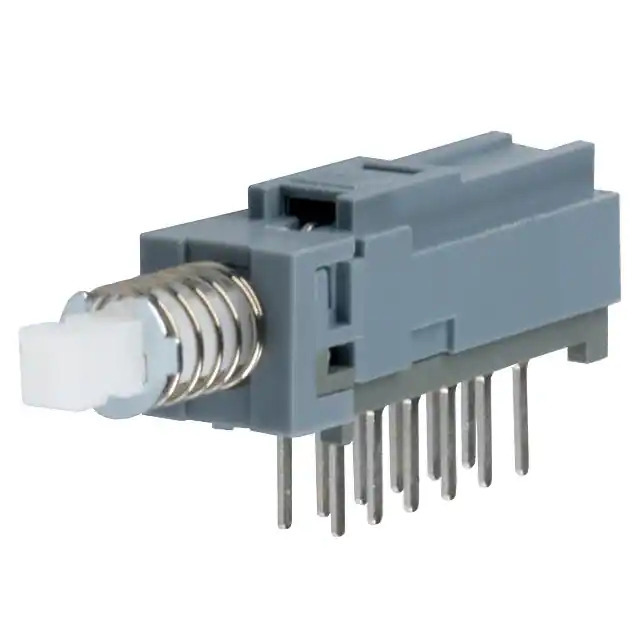

Same model may have multiple batches, images only for reference.
PBH4UOANAGX E-Switch
Same model may have multiple batches, images only for reference.

PBH4UOANAGX

Part No PBH4UOANAGX
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH 4PDT 0.1A 30V
Datasheet
PBH4UOANAGX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series PBH
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit 4PDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number PBH4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376199-PBH4UOANAGX
Ultra Librarian 3D Model Ultra Librarian PBH4UOANAGX CAD Model

Description

The E-Switch 1376199-PBH4UOANAGX is a standard pushbutton switch.

  • Manufacturer: E-Switch
  • Product: 1376199-PBH4UOANAGX
  • Series: PBH
  • Circuit: 4PDT
  • Current Rating: 100mA (DC)
  • Voltage Rating: 30V DC
  • Actuator: Plunger for Cap
  • Actuator/Cap Color: White
  • Termination Style: PC Pin
  • Mounting: Through Hole, Right Angle
  • Packaging: Bulk
  • Mechanical Life: 30,000 Cycles
  • Electrical Life: 10,000 Cycles
