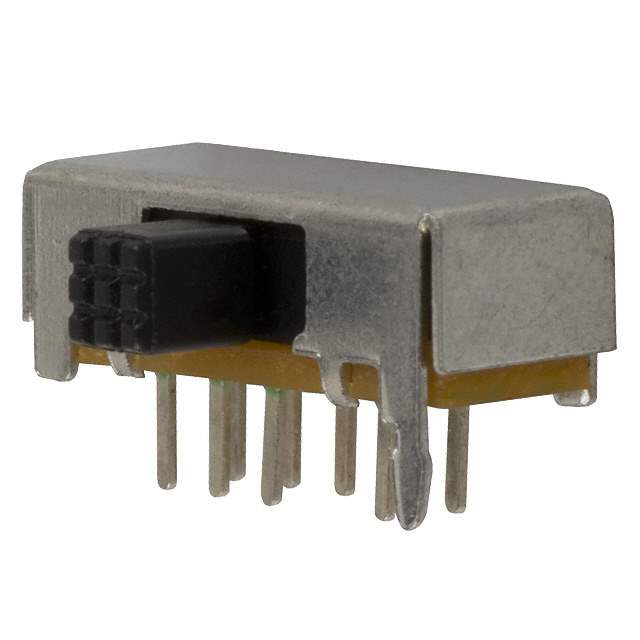

EG2308 Real Image
Same model may have multiple batches, images only for reference.

EG2308

Part No EG2308
Manufacturer E-Switch
Catalog Slide Switches
Description SWITCH SLIDE DP3T 100MA 12V / Slide Switch DP3T Through Hole, Right Angle
Datasheet
EG2308 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 200/300gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names EG1911,P040210
Standard Package 400
Win Source Part Number 1061406-EG2308
Ultra Librarian 3D Model Ultra Librarian EG2308 CAD Model

Description

The EG2308 is a DP3T circuit slide switch manufactured by E-Switch.

  • Voltage Rating: 12V DC
  • Operating Force: 200/300gf
  • Switch Function: On-On-On
  • Actuator Type: standard
  • Actuator Length: 4.00mm
  • Switch Travel: 2.00mm
  • Mounting Type: through-hole, right angle
  • Operating Temperature: -20°C ~ 70°C
  • REACH: unaffected
  • ECCN: EAR99
