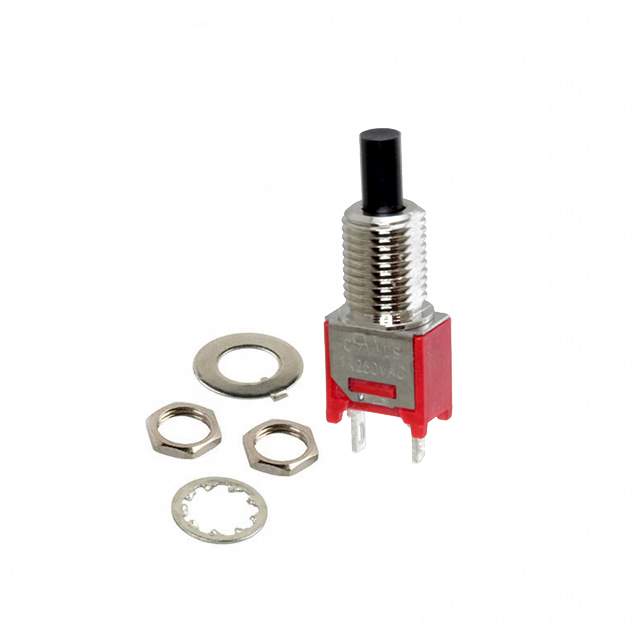

800SP9B9M1QEH

Part No 800SP9B9M1QEH
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 3A 120V / Pushbutton Switch SPST-NO Standard Panel Mount, Rear
Datasheet
800SP9B9M1QEH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series 800
Package Bulk
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number 800SP9
Standard Package 135
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1340507-800SP9B9M1QEH
Ultra Librarian 3D Model Ultra Librarian 800SP9B9M1QEH CAD Model

Description

The E-Switch 800SP9B9M1QEH is a standard pushbutton switch that is SPST-NO and has a voltage rating of 120V AC and 28V DC.

  • Circuit: SPST-NO
  • Voltage Rating - AC: 120V
  • Voltage Rating - DC: 28V
  • Current Rating: 3A (AC/DC)
  • Panel Cutout Dimensions: Circular - 6.35mm Dia
  • Operating Temperature: -30°C to 85°C
  • Mechanical Life: 50,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Mounting Type: Panel Mount, Rear
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL: 1 (Unlimited)
  • Standard Package: 135
