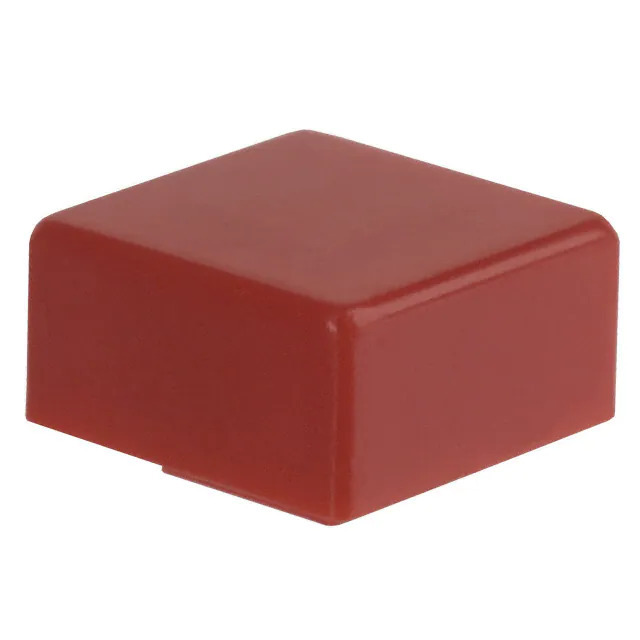

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Accessories - Caps
Mfr E-Switch
Series -
Package Bulk
Product Status Active
Switch Type Pushbutton
Shape Square
Color Red
Illumination Non-Illuminated
For Use With/Related Products 320, TL1100, TL2201Y and TL4201Y Series
Mounting Type Snap Fit
Size 8.00mm L x 8.00mm W x 5.00mm H
Features -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1375930-6JRED
Ultra Librarian 3D Model Ultra Librarian 6JRED CAD Model

Description

The E-Switch Switch Accessories Caps are high-quality caps designed for enhancing the functionality and appearance of switches.

  • Compatibility: 320, TL1100, TL2201Y, and TL4201Y series switches
  • Mounting Type: Snap-Fit
  • Size: 8.00mm L x 8.00mm W x 5.00mm H
  • Illumination: Non-Illuminated
  • Switch Type: Pushbutton
  • Shape: Square
