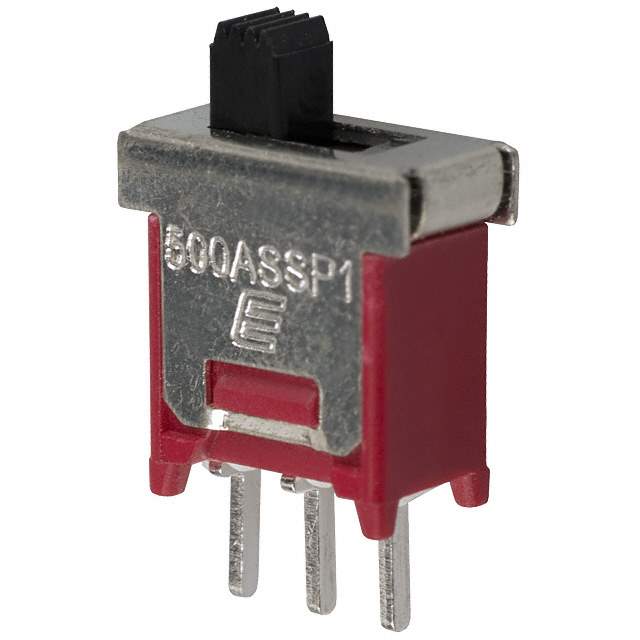

500ASSP1M2QE Real Image
Same model may have multiple batches, images only for reference.

500ASSP1M2QE

Part No 500ASSP1M2QE
Manufacturer E-Switch
Catalog Slide Switches
Description SWITCH SLIDE SPDT 3A 120V  /  Slide Switch SPDT Through Hole
Datasheet
500ASSP1M2QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series 500A
Package Tray
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 3.10mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 3.05mm
Mechanical Life 30,000 Cycles
Electrical Life 30,000 Cycles
Base Product Number 500ASSP1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names EG2481,Q11815708,T551002
Standard Package 63
Win Source Part Number 1222967-500ASSP1M2QE
Ultra Librarian 3D Model Ultra Librarian 500ASSP1M2QE CAD Model

Description

The E-Switch 500ASSP1M2QE is a slide switch that has a termination style of PC Pin.

  • Series: 500A
  • Terminals: Epoxy sealed
  • Contact Finish: Silver
  • Contact Material: Copper alloy
  • Actuator Material: Polyamide (PA), nylon
  • Voltage Rating: 120 V AC and 28 V DC
  • Package: Tray
  • Standard Package: 63
  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 3.10mm
  • Switch Travel: 3.05mm
  • Electrical Life: 30,000 cycles
  • Mechanical Life: 30,000 cycles
  • Mounting Type: Through hole
  • Operating Temperature: -30°C to 85°C
  • MSL Level: 1 (unlimited)
  • Current Rating: 3A (AC/DC)
  • REACH: Unaffected
  • HTSUS: 8536.50.9050
