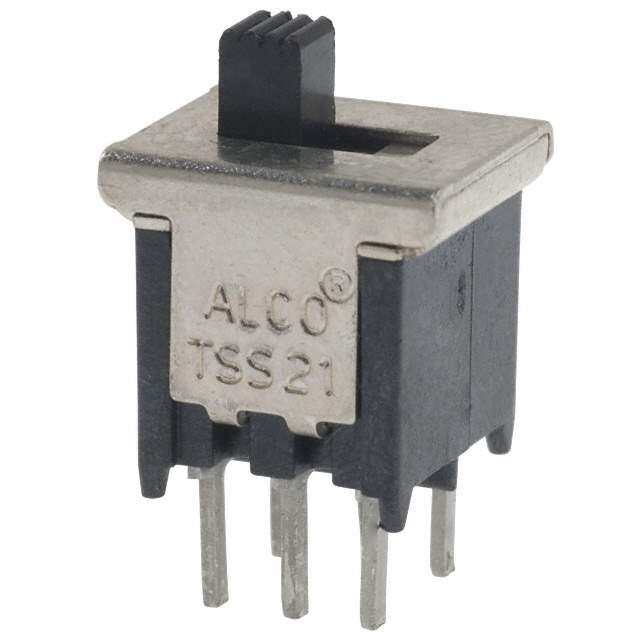

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series TSS
Packaging Bulk
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Standard
Actuator Length 2.80mm
Contact Material Copper
Contact Finish Gold
Mounting Style Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polybutylene Terephthalate (PBT)
Switch Travel 3.05mm
Operating Temperature Range -20°C ~ 80°C
Mechanical Life 60,000 Cycles
Electrical Life 60,000 Cycles
Operating Force 150 ~ 600gf
Win Source Part Number 760485-1571982-1
Popularity Medium
Supply and Demand Status Limited
Family Name 1571982
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1571982-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 760485-1571982-1 is a TSS series switch with a SPDT circuit and an On-On switch function.

  • Series: TSS
  • Circuit: SPDT
  • Switch Function: On-On
  • Termination: PC Pin
  • Mounting: Through Hole
  • Contact Finish: Gold
  • Contact Material: Copper
  • Voltage Rating: 20V AC and DC
  • Mechanical Life: 60,000 cycles
  • Electrical Life: 60,000 cycles
  • Operating Force: 150-600gf
  • Switch Travel: 3.05mm
  • Actuator Length: 2.80mm
  • Actuator Type: Standard
  • ECCN: EAR99
  • Estimated EOL Date: 2026
