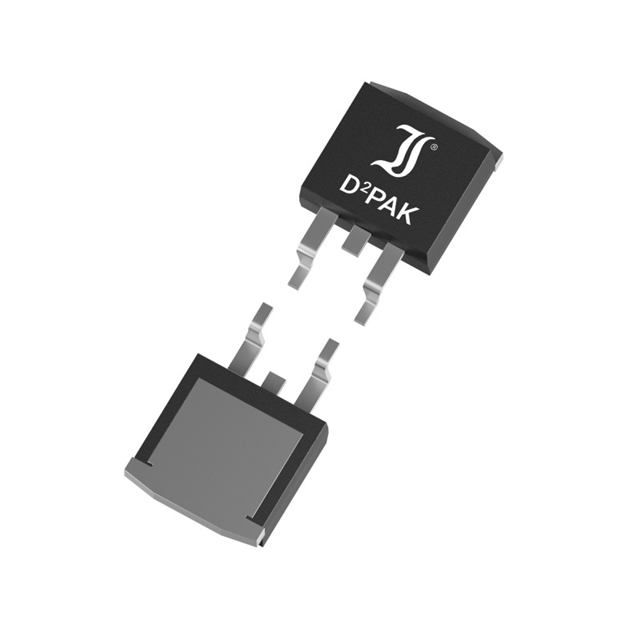

UGB8BT Real Image
Same model may have multiple batches, images only for reference.

UGB8BT

Part No UGB8BT
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SF Rect, 100V, 8.00A, 25ns / Diode Standard 100 V 8A Surface Mount TO-263AB (D2PAK)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Operating Temperature - Junction -50°C ~ 150°C
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-UGB8BT
Standard Package 30
Win Source Part Number 1004033-UGB8BT
Ultra Librarian 3D Model Ultra Librarian UGB8BT CAD Model

Description

The UGB8BT is a rectifier diode manufactured by Diotec Semiconductor.

  • Type: Fast Recovery Diode
  • Maximum Forward Current: 8A
  • Reverse Voltage: 100V
  • Applications: Power Supplies, Lighting, and Automotive Systems
  • Benefit: Ideal choice for applications that require a fast recovery diode with high performance and reliability.
