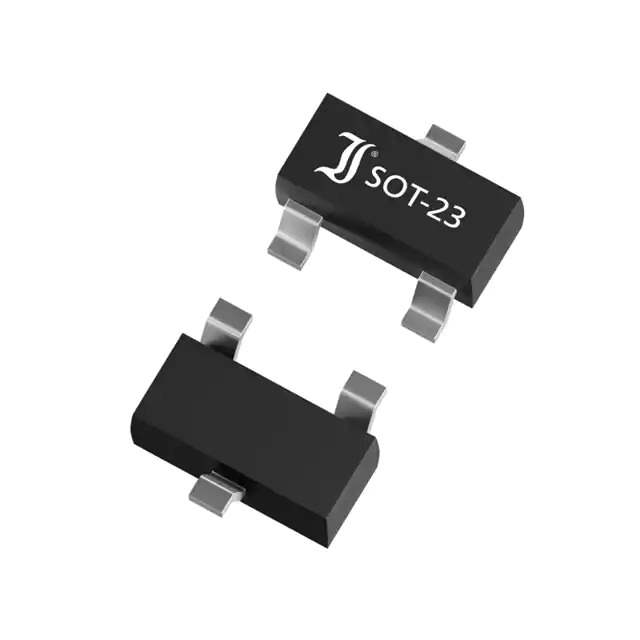

PSOT24 Real Image
Same model may have multiple batches, images only for reference.

PSOT24

Part No PSOT24
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 24VWM 49VC SOT23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 49V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 88pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 282068-PSOT24
Ultra Librarian 3D Model Ultra Librarian PSOT24 CAD Model

Description

The 282068-PSOT24 is a unidirectional zener transient voltage suppressor (TVS) diode.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Clamping Voltage: 49V @ peak pulse current (Ipp)
  • Power Rating: 500W
  • Application: general-purpose
  • Protection Against: voltage transients and surges
  • Capacitance: 88pF @ 1MHz
  • Peak Pulse Current: 12A (8/20μs)
  • Package: TO-236-3, SC-59, SOT-23-3 surface mount package
  • Package Quantity: tape and reel package of 3,000 pcs
  • Operating Temperature: -55°C to 150°C
