Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Diodes Incorporated
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 5 A
Speed Fast Recovery =< 500ns, > 5A (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F 78pF @ 4V, 1MHz
Mounting Type Through Hole

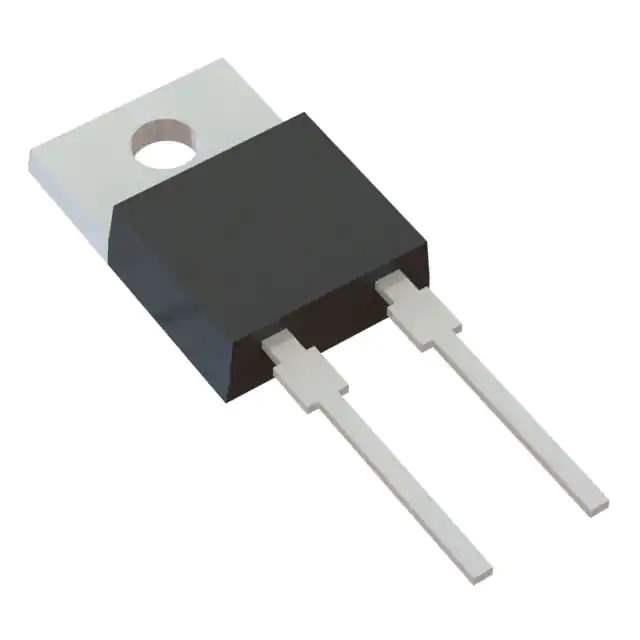

Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 716450-STPR560D
Ultra Librarian 3D Model Ultra Librarian STPR560D CAD Model

Description

Introducing the STPR560D Rectifier from Diodes Incorporated

The STPR560D is a high-performance rectifier specially designed by Diodes Incorporated to cater to the demanding needs of modern electronic applications. This state-of-the-art component is part of the STPR series, renowned for its exceptional efficiency and reliability in converting alternating current (AC) into direct current (DC).

Constructed with the latest semiconductor technology, the STPR560D offers a peak repetitive reverse voltage of 600V, making it suitable for high-voltage applications. Its average rectified forward current is rated at 5A, ensuring that it can handle significant power requirements with ease. The device is also capable of withstanding a surge current of up to 150A, providing robust protection against current spikes that are common in power supply circuits.

One of the key features of the STPR560D is its low forward voltage drop, which enhances system efficiency by minimizing power loss during operation. This characteristic is particularly beneficial in reducing operational costs and heat dissipation issues, making it an ideal choice for energy-sensitive designs.

The STPR560D comes in a robust DO-201AD package that is designed for through-hole mounting, providing a secure and reliable connection in various types of printed circuit boards (PCBs). This package is also known for its high thermal performance, ensuring that the rectifier operates within safe temperature ranges even under high current conditions.

Applications for the STPR560D are diverse and include power supplies, adapters, lighting systems, and other electronics that require efficient rectification. Its high reliability and performance make it a preferred choice for designers looking to enhance the efficiency and longevity of their products.

In summary, the STPR560D from Diodes Incorporated is a superior rectifier that combines high voltage and current handling capabilities with efficiency and thermal performance. Its robust design and versatile application potential make it an essential component for any power management solution.
