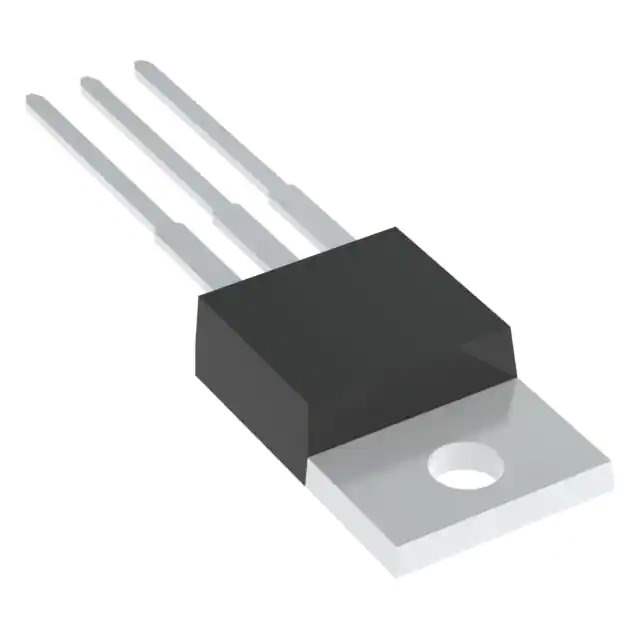

The STPR1620CTW from Diodes Incorporated is a high-performance, ultra-fast recovery rectifier designed to meet the demanding requirements of high-efficiency power supply applications. This dual common cathode rectifier is housed in a TO-220AB package, offering robust thermal performance and ease of integration into a wide variety of circuit designs.

Key Features

• Voltage Rating: The device boasts a repetitive peak reverse voltage (V<sub>RRM) of 200V, making it suitable for operations in circuits with high voltage requirements.
• Current Capacity: With a forward rectified current (I<sub>F(AV)) of 16A, it can handle significant power levels, ideal for power conversion in both consumer and industrial electronics.
• Ultra-Fast Recovery Time: The STPR1620CTW features an ultra-fast recovery time, typically as low as 35ns, which minimizes power loss and improves efficiency in high-frequency applications.
• Low Forward Voltage Drop: A low forward voltage drop (V<sub>F) reduces power dissipation and improves overall efficiency, which is critical for energy-sensitive designs.
• Thermal Characteristics: The TO-220AB package enhances thermal characteristics, providing a junction temperature range from -65°C to 150°C, ensuring stability and reliability across various operating conditions.
• RoHS Compliant: The rectifier complies with RoHS standards, ensuring that it is free from hazardous substances and suitable for use in environmentally sensitive applications.

Applications

The STPR1620CTW is designed for use in a variety of applications where efficiency and fast switching are paramount. These include:

• Switching power supplies
• Freewheeling diodes
• DC/DC converters
• Motor controllers
• Power inverters
• Automotive environments

With its combination of high-speed switching, reliability, and thermal efficiency, the STPR1620CTW from Diodes Incorporated is an excellent choice for designers looking to enhance the performance of their power management systems.
