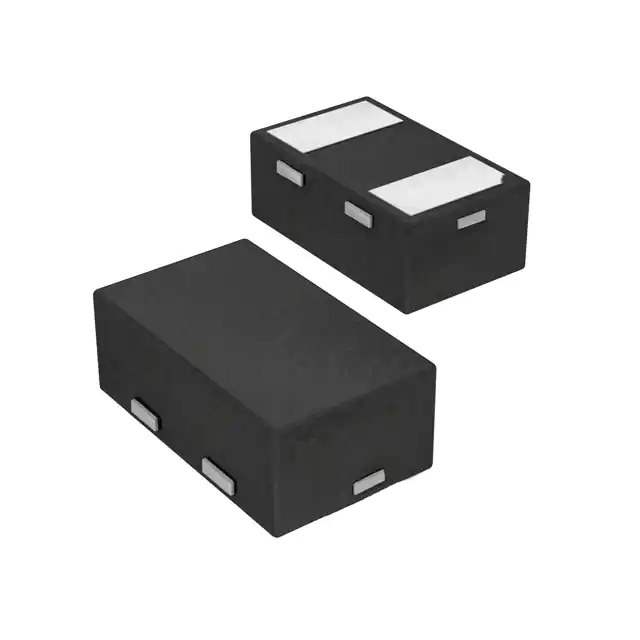

SBRT05U20LP-7B

Part No SBRT05U20LP-7B
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SBR 20V 500MA 2DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Diodes Incorporated
Series TrenchSBR®
Package Tape & Reel
Product Status Obsolete
Technology Super Barrier
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 390 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 6 ns
Current - Reverse Leakage @ Vr 50 µA @ 20 V
Capacitance @ Vr, F 14pF @ 20V, 1MHz
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Supplier Device Package X1-DFN1006-2
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number SBRT05
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 749103-SBRT05U20LP-7B
Ultra Librarian 3D Model Ultra Librarian SBRT05U20LP-7B CAD Model

Description

Product Overview: SBRT05U20LP-7B from Diodes Incorporated

The SBRT05U20LP-7B is a state-of-the-art Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global provider of high-quality semiconductor products. This rectifier is specifically engineered to offer superior efficiency and performance in a variety of applications, including power management, battery charging, and energy conversion systems.

Constructed with Diodes Incorporated's patented Trench Schottky technology, the SBRT05U20LP-7B delivers a low forward voltage drop and reduced power loss, making it an ideal choice for high-efficiency power supply designs. The device is capable of conducting up to 5A of continuous forward current, with a peak repetitive reverse voltage of 20V. This combination of current capacity and voltage rating ensures that the device is versatile enough to handle a wide range of applications.

The SBRT05U20LP-7B is housed in a PowerDI®5 package, which is known for its slim and compact design. This package offers a low profile with a height of just 0.8mm, making it well-suited for applications where space is at a premium. Additionally, the PowerDI®5 package enhances thermal performance, ensuring that the device operates reliably even under high temperature conditions.

Key features of the SBRT05U20LP-7B include:

  • Low forward voltage drop (VF) for higher efficiency
  • High forward surge capability
  • Low thermal resistance due to the PowerDI®5 package design
  • Lead-free and RoHS compliant, minimizing the environmental impact
  • Guard ring for enhanced ruggedness and long-term reliability

Applications for the SBRT05U20LP-7B are diverse and include:

  • Switching power supplies
  • DC-DC converters
  • Free-wheeling diodes in power inverters
  • OR-ing diodes in redundant power systems
  • Reverse battery protection circuits

Diodes Incorporated's SBRT05U20LP-7B is a testament to the company's commitment to providing high-performance semiconductor solutions. With its advanced features and robust design, it is well-positioned to meet the needs of modern electronic devices that require efficient power management.
