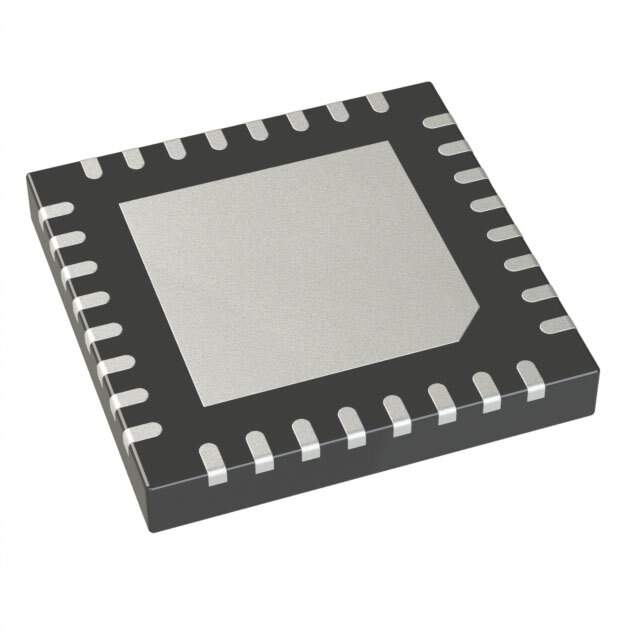

The PI6CDBL401BZHIEX is a high-performance, low-power clock buffer from Diodes Incorporated, designed to address the stringent requirements of modern electronics. This clock buffer is part of Diodes Incorporated's extensive line of timing and clock management solutions, offering a blend of reliability, precision, and power efficiency.

Key Features

• Four Differential Outputs: The device provides four low-jitter differential outputs, ensuring signal integrity and minimizing noise in sensitive applications.
• Wide Frequency Range: It supports a broad range of input clock frequencies, making it versatile for various applications, from consumer electronics to industrial systems.
• Low Power Consumption: Designed with power efficiency in mind, the PI6CDBL401BZHIEX helps in reducing the overall power consumption of the system.
• Advanced Packaging: Available in a compact package, the product is suitable for space-constrained applications without compromising performance.
• High Reliability: As with all Diodes Incorporated products, this clock buffer is manufactured to high standards, ensuring dependable operation across its lifespan.

Applications

The PI6CDBL401BZHIEX is ideal for a range of applications, including but not limited to:

• Data Centers
• Networking Equipment
• High-Performance Computing
• Telecommunications
• Storage Systems

Technical Specifications

The buffer operates with a differential input and outputs, compatible with LVPECL, LVDS, or HCSL levels. It features a low additive phase jitter, typically at 50fs RMS, contributing to its high-performance metrics. The device also includes an input fail-safe mechanism that prevents output disruption during input signal loss.

Environmental and Quality Standards

Compliant with industry quality and environmental standards, the PI6CDBL401BZHIEX meets RoHS directives and is lead-free. It is designed to withstand harsh industrial environments while maintaining its functionality and performance.

Conclusion

In summary, the PI6CDBL401BZHIEX from Diodes Incorporated is a versatile, efficient, and reliable solution for clock distribution in a wide array of electronic systems. Its combination of performance, power efficiency, and compact form factor makes it an excellent choice for engineers and designers looking to optimize their clock management subsystems.
