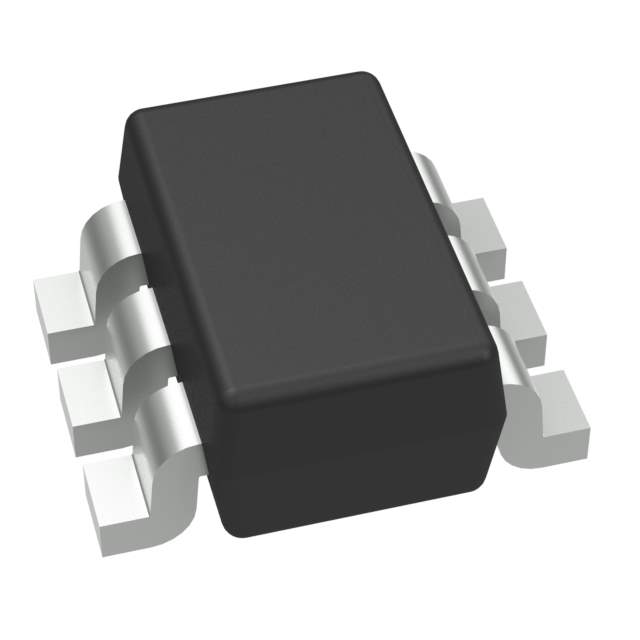

The PI5A3157CEX from Diodes Incorporated is a high-performance, single-pole double-throw (SPDT) analog switch designed for a broad range of applications. With its compact and efficient design, this switch is ideal for multiplexing and signal routing in various electronic devices.

Key Features

• Wide Voltage Range: The PI5A3157CEX operates over a wide voltage range of 2.3V to 5.5V, making it suitable for both 3.3V and 5V systems.
• Low On-Resistance: The switch features low on-resistance (typically 0.5Ω), which minimizes signal distortion and ensures efficient signal transmission.
• Single Supply Operation: Designed for single supply operation, this switch simplifies power management in portable and battery-operated devices.
• High-Speed Switching: The device offers high-speed switching performance, which is critical for applications that require fast signal routing.
• Low Power Consumption: With its low power consumption, the PI5A3157CEX helps extend battery life in portable applications.
• Break-Before-Make Switching: It ensures signal integrity by preventing simultaneous connections of the common terminal to both the normally-open and normally-closed terminals.

Applications

The PI5A3157CEX is versatile and can be used in a variety of applications, including:

• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems
• Portable Electronic Devices
• Test and Measurement Equipment

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the PI5A3157CEX is no exception. It is built to meet the stringent requirements of industrial and commercial applications. With its robust design and high-quality manufacturing, the PI5A3157CEX is a reliable choice for designers looking to incorporate an efficient analog switch into their systems.
