Diodes Incorporated PI4ULS3V16ZFE - Ultra-Low Voltage Level Translator

The PI4ULS3V16ZFE from Diodes Incorporated is a high-performance, ultra-low voltage bidirectional level translator designed for multi-voltage digital system applications. It is specifically engineered to address the needs of modern electronics that require efficient voltage level translation between different logic level devices operating at low power supply levels.

This device features 16-bit dual-supply voltage level translation without a direction pin, which simplifies the interface between different voltage domains within a system. It is optimized for applications that demand a seamless translation from as low as 0.95V to 3.6V on the A side and 1.65V to 5.5V on the B side, making it extremely versatile for interfacing between low-voltage microprocessors or microcontrollers and higher voltage peripherals.

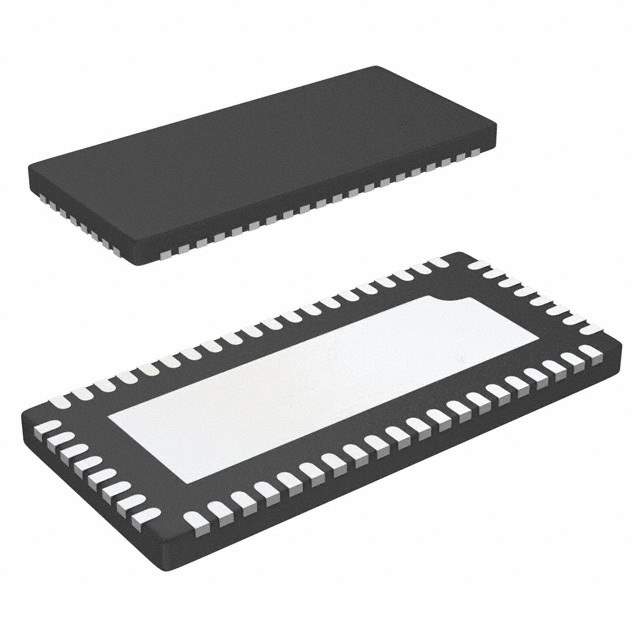

The PI4ULS3V16ZFE comes in a compact 48-pin TQFN (Thin Quad Flat No-lead) package, which is ideal for space-constrained applications. Its small footprint does not compromise its performance, as it offers high-speed signal propagation with a maximum data rate of 100Mbps, ensuring rapid communication between devices.

One of the key features of this level translator is its power-off protection. This allows the I/O ports on the B side to be tolerant to a maximum of 5.5V even when the device is powered off, providing robustness and reliability in the event of unexpected power-down scenarios. Additionally, the PI4ULS3V16ZFE supports hot-insertion, which means that devices can be added or removed without the need to power down the system, thus facilitating maintenance and upgrades.

To ensure the highest signal integrity, the PI4ULS3V16ZFE is equipped with integrated pull-up and pull-down resistors on the input and output ports. These resistors help maintain a defined logic level when the ports are in a high-impedance state, preventing potential data corruption.

Overall, the PI4ULS3V16ZFE from Diodes Incorporated is a highly reliable and efficient solution for systems that require level translation across different voltage domains. Its features make it suitable for a wide range of applications, including mobile devices, computing, consumer electronics, and industrial controls where space is at a premium and power efficiency is paramount.
