Diodes Incorporated PI3USB9201ZTAEX USB 2.0 Switch

The PI3USB9201ZTAEX is a versatile USB 2.0 high-speed switch designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This product is specifically engineered to facilitate the routing of USB 2.0 signals through its dual single-pole double-throw (SPDT) switch configuration. It is an ideal solution for applications requiring USB signal switching, such as smartphones, tablets, notebooks, and docking stations.

One of the key features of the PI3USB9201ZTAEX is its high bandwidth, which ensures minimal signal degradation during the switching process. This is crucial for maintaining the integrity of high-speed data transfers that USB 2.0 supports. It operates over a wide voltage range, from 2.7V to 5.5V, making it suitable for various USB-powered devices.

The PI3USB9201ZTAEX is designed with a low on-resistance (RON) of typically 4Ω, which contributes to its excellent signal integrity and low insertion loss. Additionally, the device is optimized for low bit-to-bit skew, low crosstalk, and high off-isolation, which are essential parameters for maintaining signal clarity and reducing noise interference in complex electronic systems.

Another significant advantage of this USB switch is its ESD protection feature. The PI3USB9201ZTAEX is equipped with built-in ESD protection circuitry that can withstand up to ±15kV (air) and ±8kV (contact) discharge events, as per the IEC 61000-4-2 standard. This provides robust protection for sensitive components downstream, enhancing the durability and reliability of the end product.

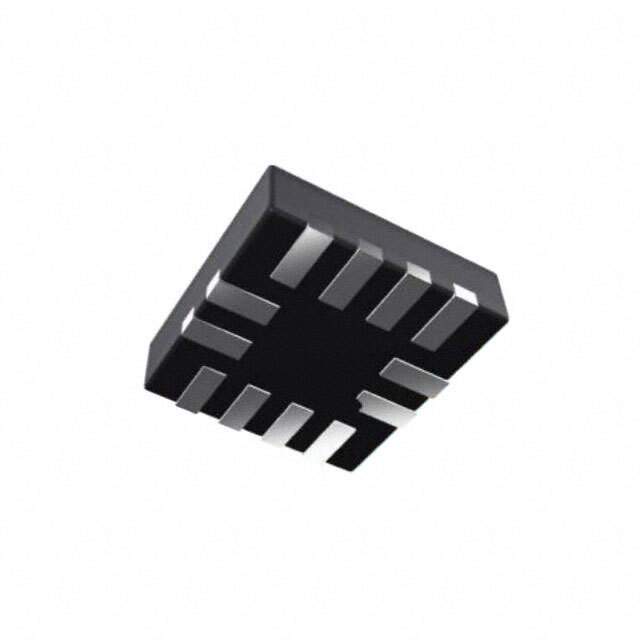

For design flexibility, the PI3USB9201ZTAEX is available in a compact U-DFN3030-10 (Type C) package, which is highly space-efficient and suitable for designs where board space is at a premium. Its operating temperature range of -40°C to +85°C ensures that the device can perform reliably in a wide range of environmental conditions.

Overall, the PI3USB9201ZTAEX from Diodes Incorporated is a high-performance USB 2.0 switch that offers designers a combination of high-speed operation, low power consumption, and robust ESD protection, making it a smart choice for modern USB interface applications.
