Overview of Diodes Incorporated P6SMAJ13ADF-13 TVS Diode

The P6SMAJ13ADF-13 from Diodes Incorporated is a robust Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This TVS diode is an ideal solution for safeguarding voltage-sensitive components which can be affected by these sudden spikes, ensuring the reliability and longevity of electronic systems.

Key Features

• Stand-off Voltage: The P6SMAJ13ADF-13 has a stand-off voltage of 13V, making it suitable for a range of applications that require this level of voltage protection.
• Peak Pulse Power: It offers a peak pulse power dissipation of 600W for a 10/1000μs waveform, providing robust protection against high energy transients.
• Clamping Voltage: With a low clamping voltage, this TVS diode ensures that the voltage spike is limited to a safe level for the circuit components it is designed to protect.
• Fast Response Time: The device reacts in picoseconds to overvoltage events, providing immediate protection to the rest of the circuit.

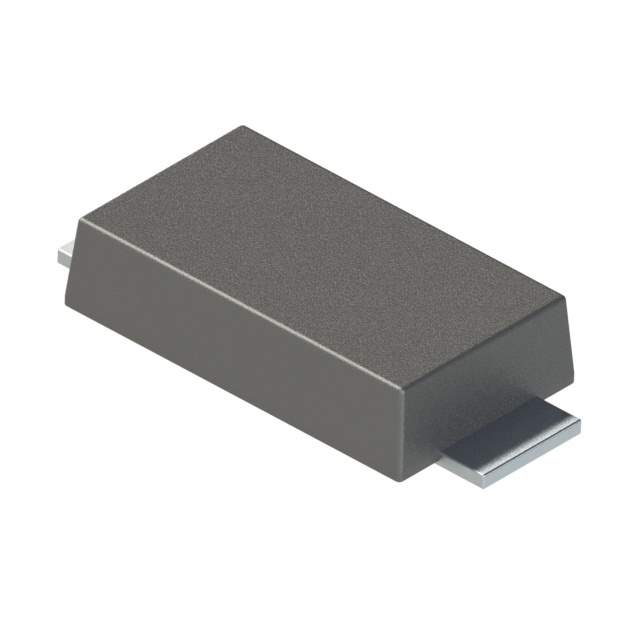

• Package: It comes in a DO-214AC (SMA) package which is compact and suitable for automated placement in a wide range of PCB applications.
• RoHS Compliant: The P6SMAJ13ADF-13 is compliant with RoHS standards, ensuring that it meets global environmental and regulatory requirements.

Applications

This TVS diode is widely used in various applications, including:

• Industrial systems
• Consumer electronics
• Telecommunication devices
• Power supply units
• Automotive systems

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the P6SMAJ13ADF-13 is no exception. It is manufactured to high standards, ensuring that it delivers consistent performance and reliability in protecting sensitive circuits from voltage transients.

Whether you are designing a new system or looking to enhance the protection of an existing one, the P6SMAJ13ADF-13 TVS diode is an excellent choice for managing transient voltage and safeguarding your electronic components.
