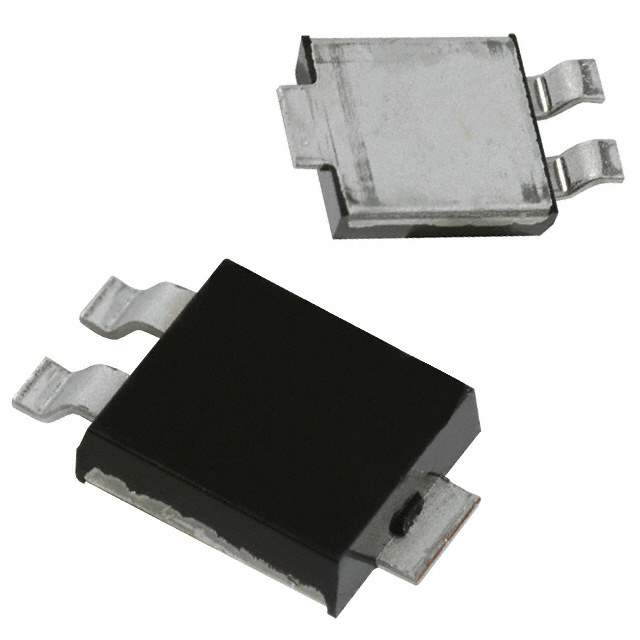

Product Overview: MBRM560-13

The MBRM560-13 is a robust and efficient Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor industry. This rectifier is engineered to provide high surge capability, low power loss, and improved efficiency, making it an excellent choice for a wide range of applications.

Key Features

• High Current Capability: The MBRM560-13 is capable of conducting up to 5A of average rectified current, making it suitable for high-power applications.
• Low Forward Voltage Drop: With a forward voltage drop as low as 0.70V, this device ensures low power losses and higher efficiency, which is crucial for energy-sensitive circuits.
• High Surge Capacity: It is designed to withstand surge currents, providing reliability and stability in circuits that are exposed to transient overvoltages.
• Power Package: The MBRM560-13 comes in a power package that is compact and suitable for automated assembly, allowing for efficient use of PCB space.
• Guard Ring Die Construction: This feature provides transient over-voltage protection and ensures a long operational life by enhancing the device's reliability.

Applications

The MBRM560-13 is ideal for a variety of applications, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes
• Polarity protection devices

Product Specifications

The MBRM560-13 boasts impressive specifications that cater to demanding electrical environments:

• Peak Repetitive Reverse Voltage (Vrrm): 60V
• Average Rectified Output Current (Io): 5A
• Non-Repetitive Peak Surge Current (Ism): 150A
• Operating Junction Temperature Range: -55°C to +150°C
• Package: MBRM (SOD-123)

With its combination of durability, efficiency, and compact design, the MBRM560-13 from Diodes Incorporated is an excellent choice for designers and engineers looking for a reliable Schottky barrier rectifier for their next project.
