The GBJ802 is a high-quality bridge rectifier produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This electronic component is designed to efficiently convert an alternating current (AC) input into a direct current (DC) output, a process essential for numerous electronic applications. With its robust construction and reliable performance, the GBJ802 is suitable for a diverse range of products, including power supplies, battery chargers, and other energy conversion systems.

Key Features

• High Current Rating: The GBJ802 can handle a significant current load, making it ideal for applications requiring a high power output.
• High Reverse Voltage: It is capable of withstanding high reverse voltages, which ensures stability and longevity in fluctuating electrical environments.
• Low Forward Voltage Drop: The component exhibits a low forward voltage drop, contributing to its efficiency by minimizing power loss during operation.
• Isolation Voltage: With a high isolation voltage, the GBJ802 provides excellent electrical isolation between the input and output, enhancing the safety of the end application.

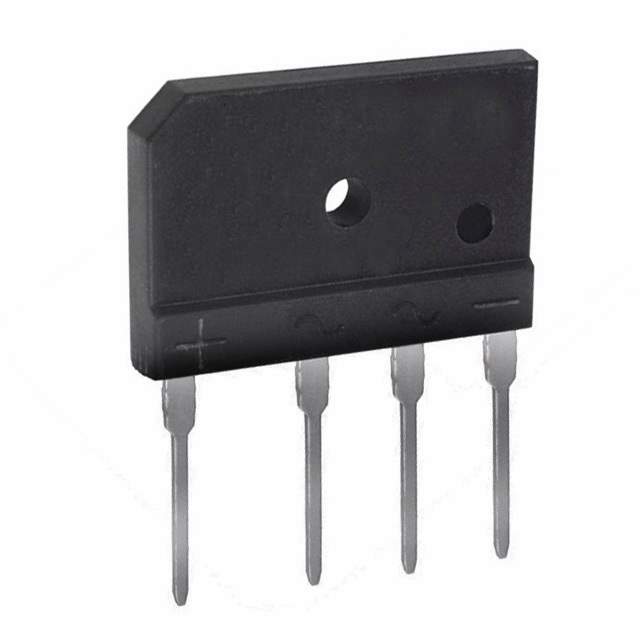

• Package: It comes in a square package that is easy to mount on a printed circuit board (PCB) and is compatible with standard soldering processes.

Electrical Specifications

The GBJ802 boasts impressive electrical characteristics that make it a top choice for demanding applications. It has a repetitive peak reverse voltage (VRRM) of 800V, which ensures that it can handle high voltage requirements. The average rectified forward current (IF(AV)) is rated at 8A, providing ample current for a wide range of electronic devices. Additionally, the maximum forward voltage drop (VF) at IF(AV) is specified to be low, which contributes to the overall efficiency of the system it is integrated into.

Applications

Thanks to its robust design and electrical properties, the GBJ802 is well-suited for use in a variety of applications. It is commonly employed in switch-mode power supplies (SMPS), adapters, lighting circuits, and other power conversion and management systems that require a reliable and efficient rectification process.

Conclusion

Diodes Incorporated's GBJ802 bridge rectifier is a testament to the company's commitment to producing high-quality, reliable components for the electronics industry. With its high current and voltage ratings, low power loss, and safety features, the GBJ802 is an excellent choice for engineers and designers looking to enhance the performance and reliability of their power management systems.
