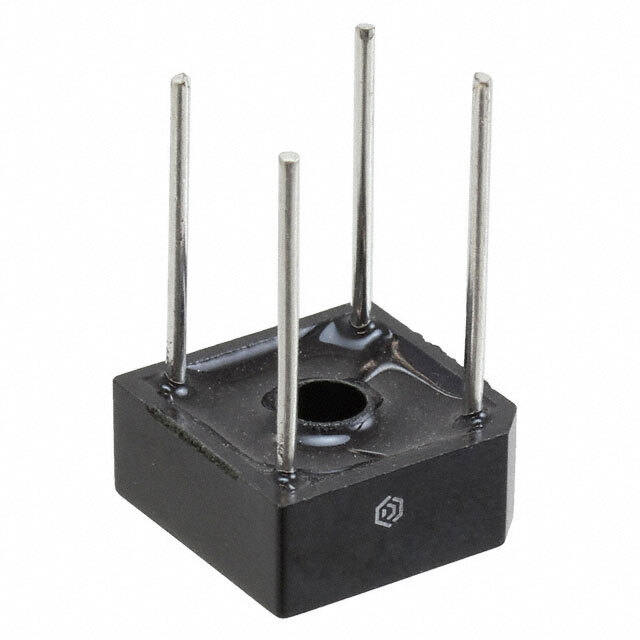

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 3 A
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Temperature Range - Operating -65°C ~ 125°C (TJ)
Mounting Type Through Hole
Case / Package 4-Square, BR-6
Supplier Device Package BR-6
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1490945-BR62
Ultra Librarian 3D Model Ultra Librarian BR62 CAD Model

You May Also Be Interested in

BR62 GeneSiC Semiconductor – Price, Stock & Datasheet
BR62
GeneSiC Semiconductor
BRIDGE RECT 1PHASE 200V 6A BR-6
